Specification | ||||||
Bore(mm) | 16 | 20 | 25 | 32 | 40 | |
Operation | Double Action Type | |||||
Working Medium | Air | |||||
Mountings | BasicType,FType,FB Type,SDB Type | |||||
Operating Pressure Range | 1~9.0MPa | |||||
Proof Pressure | 13.5MPa | |||||
℃ Operating Temperature Range | 0-70℃ | |||||
Operating Speed Range | 50~800 mm/s | |||||
Cushion | Gasket Cushioning | |||||
Port Size | M5×0.8 | G1/8" | ||||

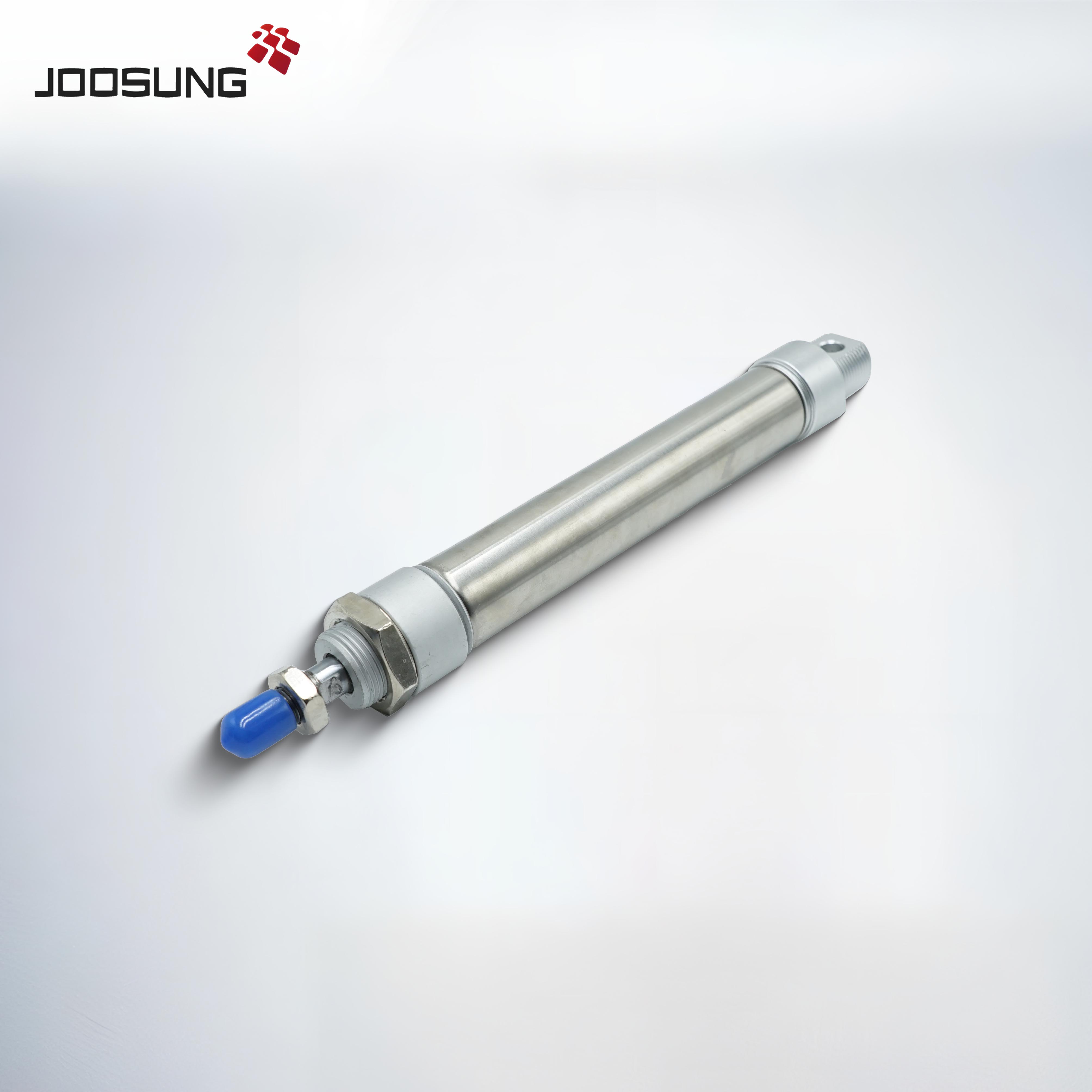

MA Stainless Steel Mini Cylinder - Compact, Durable & Corrosion-Resistant Pneumatic Solution
MA Stainless Steel Mini Cylinder– a high-performance, space-saving pneumatic actuator built for harsh environments. Perfect for automation, robotics, and industrial applications.
·ltra-Compact Design: The MA Stainless Steel Mini Cylinder optimizes space efficiency without compromising power, ideal for tight machinery layouts.
·Corrosion-Resistant Build: Crafted from grade 304 stainless steel, the MA Stainless Steel Mini Cylinder excels in humid, high-salinity, or chemically aggressive environments.
·Long-Term Reliability: Precision engineering ensures the MA Stainless Steel Mini Cylinder delivers consistent performance under extreme temperatures (-20°C to 150°C).
·Low Maintenance: Sealed bearings and anti-dust coatings reduce wear, making the MA Stainless Steel Mini Cylinder a cost-effective choice for industrial automation.
·Wide Compatibility: Integrate seamlessly with ISO 6431/VDMA 24562 standards—the MA Stainless Steel Mini Cylinder supports customizable mounts, sensors, and fittings.
Series Model | Available Models |
MA16 Series | MA16-25,MA16-50,MA16-75,MA16-80,MA16-100,MA16-125, MA16-150,MA16-160 MA16-175,MA16-200 |
MA20 Series | MA20-25,MA20-50,MA20-75,MA20-80,MA20-100,MA20-125, MA20-150,MA20-160 MA20-175,MA20-200,MA20-250,MA20-300 |
MA25 Series | MA25-25,MA25-50,MA25-75,MA25-80,MA25-100,MA25-125, MA25-150,MA25-160 MA25-175,MA25-200,MA25-250,MA25-300, MA25-350,MA25-400,MA25-450,MA25-500 |
MA32 Series | MA32-25,MA32-50,MA32-75,MA32-80,MA32-100,MA32-125, MA32-150,MA32-160 MA32-175,MA32-200,MA32-250,MA32-300, MA32-350,MA32-400,MA32-450,MA32-500 |
MA40 Series | MA40-25,MA40-50,MA40-75,MA40-80,MA40-100,MA40-125, MA40-150,MA40-160 MA40-175,MA40-200,MA40-250,MA40-300, MA40-350,MA40-400,MA40-450,MA40-500 |
