Specification | ||||
Model | 4A210-06 | 4A230C-06 | 4A210-08 | 4A230C-08 |
Fluid | Air(to be filtered by 40μm filter element) | |||
Acting | Exterior control | |||
Port size [Note1] | In=Out=Exhaust=1/8" | In=Out=1/4"Exhaust=1/8" | ||
Orifice size(Cv) | 4A210-08,4A220-08:17.0mm²(Cv=1.0) | |||
Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature | -20~70℃ | |||
Material of body | Aluminum alloy | |||
Lubrication [Note2] | Not required | |||
Max.frequency [Note3] | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Weight(g) | 4A210-06:185 | 365 | 4A210-08:185 | 365 |
[Note1]PT thread,G thread and NPT thread areavailable. | ||||
[Note2]Once lubricated air is used,continue with same medium to optimise valve life | ||||
span.Lubricants like ISO VG32 or equivalent are recommended. | ||||
[Note3]The maximum actuation frequency of no-load state. | ||||
[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data. | ||||

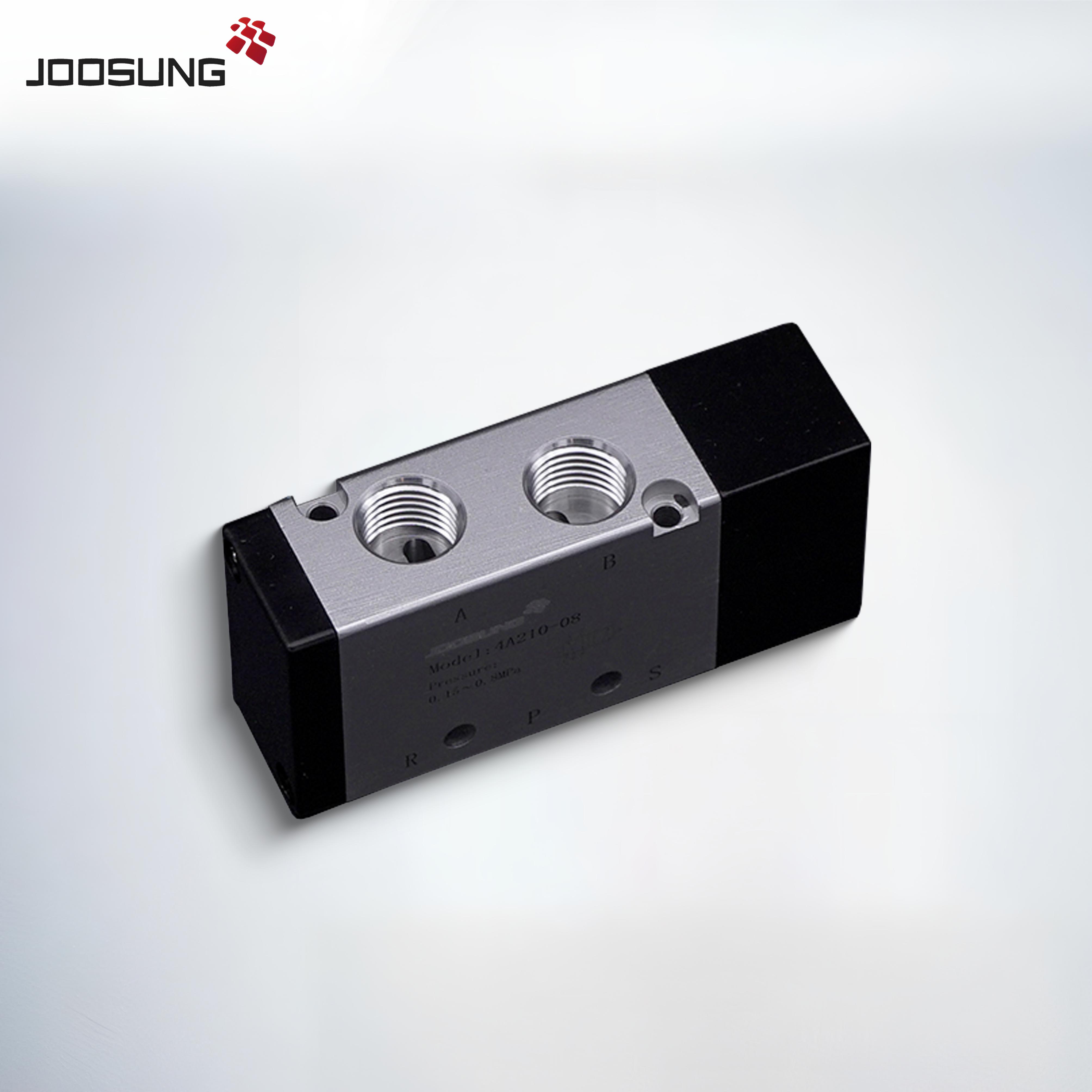

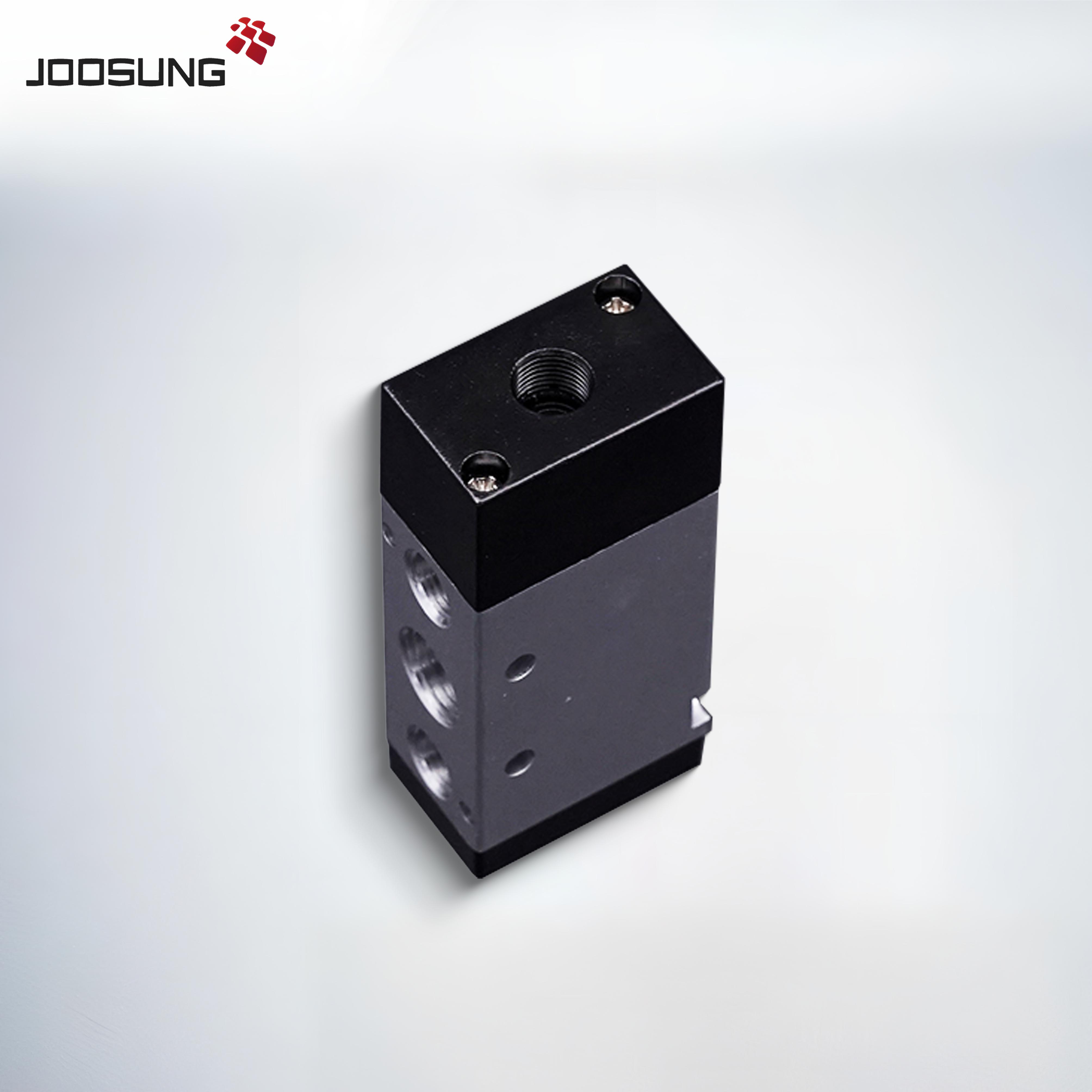

Product Name :4A200 Series pneumatic control valve
Model:4A210-06,4A220-06,4A230C-06,4A230E-06,4A230P-06
4A210-08,4A220-08,4A230C-08,4A230E-08,4A230P-08
Type : 5/2 Way,5/3 Way
Working Temperature Range: -20~70°C
The 4A210-06,4A220-06,4A230C-06,4A230E-06,4A230P-06，4A210-08,4A220-08,
4A230C-08,4A230E-08,4A230P-08 valve are versatile pneumatic control valve widely used in industrial applications.
The 4A210-06,4A220-06,4A230C-06,4A230E-06,4A230P-06，4A210-08,4A220-08,
4A230C-08,4A230E-08,4A230P-08 valve are two-position, five-way solenoid valve featuring two operational states and five ports, enabling complex pneumatic routing and control.
