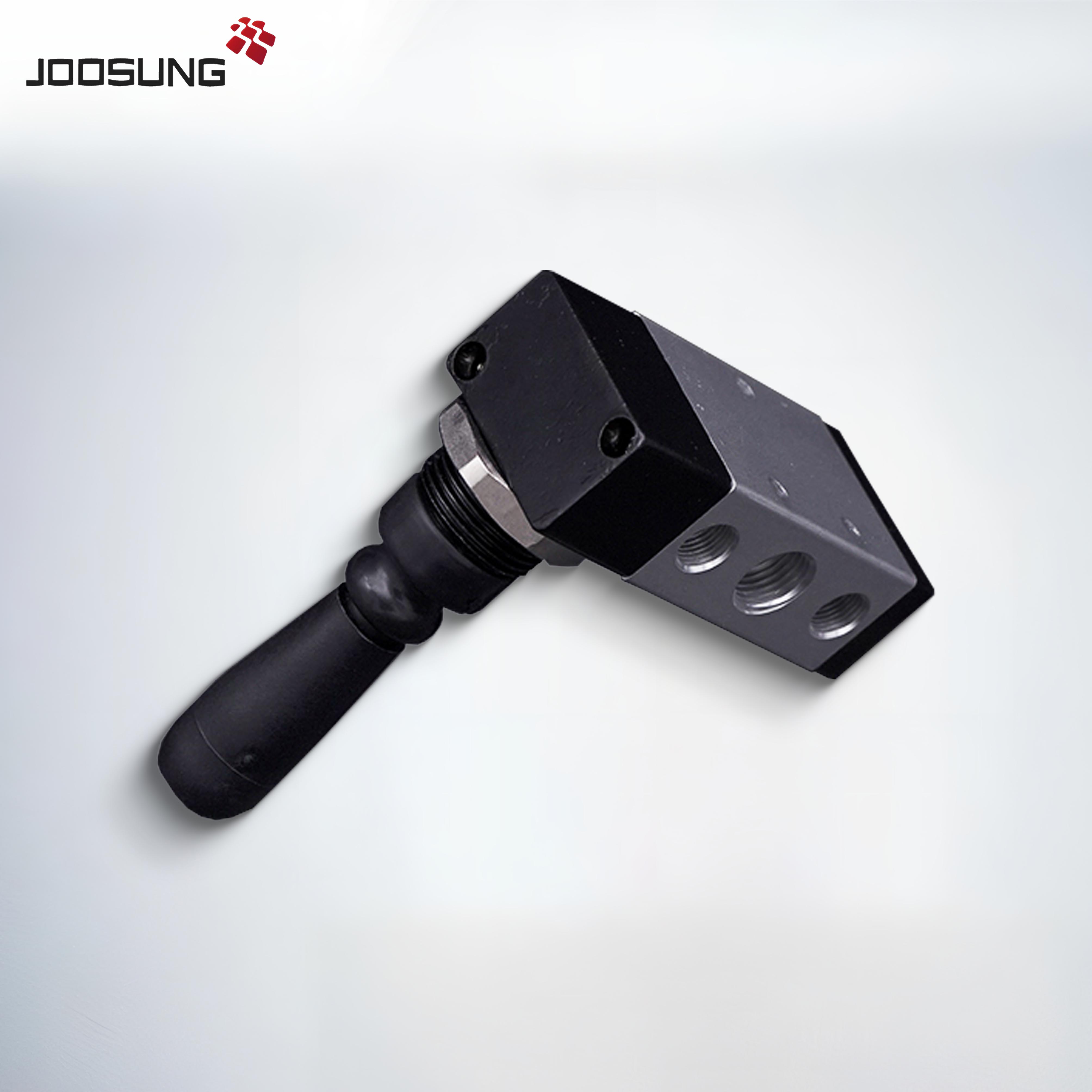

Specification

Model

210-06

230-06

210-08

230-08

310-08

330-08

310-10

330-10

Fluid

Air(to be filtered by 40μm filter element)

Operating

Manual control direct acting type)

Port size[Note1]

n=Out
=Exhaust=1/8

n=Out=1/4";
Exhaust=1/8"

ln=Out
=Exhaust=1/4"

n=Out=3/8";
Exhaust=1/4"

Orificesize(Cv)
[Note3]

4H210-08:17.0mm²(Cv=1.0)
4H230C-08:13.6mm²(Cv=0.8)

4H310-10:28.0mm²(Cv=1.65)
4H330C-10:21.3mm²(Cv=1.25)

Va|ve type

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

Lubrication [Note2]

Not required

Pressure range

0~1.0MPa(0~145psi)

Proofpressure

1.5MPa(215psi)

Temperature

-20~70℃

Material body

Aluminum alloy

Operating angle

±15°

±8.5°

±15°

±8.5°

±18°

±10°

±18°

±10°

[Note1]PT thread,G thread and NPT threadare available

Note2]Once lubricated air is used,continue with same medium to optimise valve life span
Itis suggested to use ISOVG32 lubricant or the oil with the same grade.
Note3]Equiva|ent orificeSand Cv are all ca|cu|ated from the flow rate data.
