Specification | |||||||
Bore(mm) | 6 | 10 | 16 | 20 | 25 | 32 | |
Working Medium | Air | ||||||
Motion Pattern | Double Action | ||||||
Ensured pressure Resistance | 1.05Mpa(10.7kgf/cm) | ||||||
Max.Pressure | 0.7Mpa(7.1kgf/cm²) | ||||||
Min.Pressure | 0.15MPa(1.5kgf/cm) | 0.1MPa(1.0kgf/cm) | 0.05MPa(0.51kgf/cm²) | ||||
Operating Temperature Range | 5-+60℃ | ||||||
Cushion | Both Ends Buffer | ||||||
Structare | Double Power | ||||||
Stroke Acjustable Range | (Returm Stroke)0~5mm | ||||||
Bearing | Slide Bearing/Ball Guide Bearing | ||||||
Precision of Piston | Slide Bearing | ±0.1 | ±0.15 | ±0.13 | ±0.11 | ±0.1 | ±0.08 |
BallGuide Bearing | ±0.1 | ±0.1 | ±0.07 | ±0.06 | ±0.05 | ±0.04 | |
Port Size | M5×0.8 | G1/8" | |||||

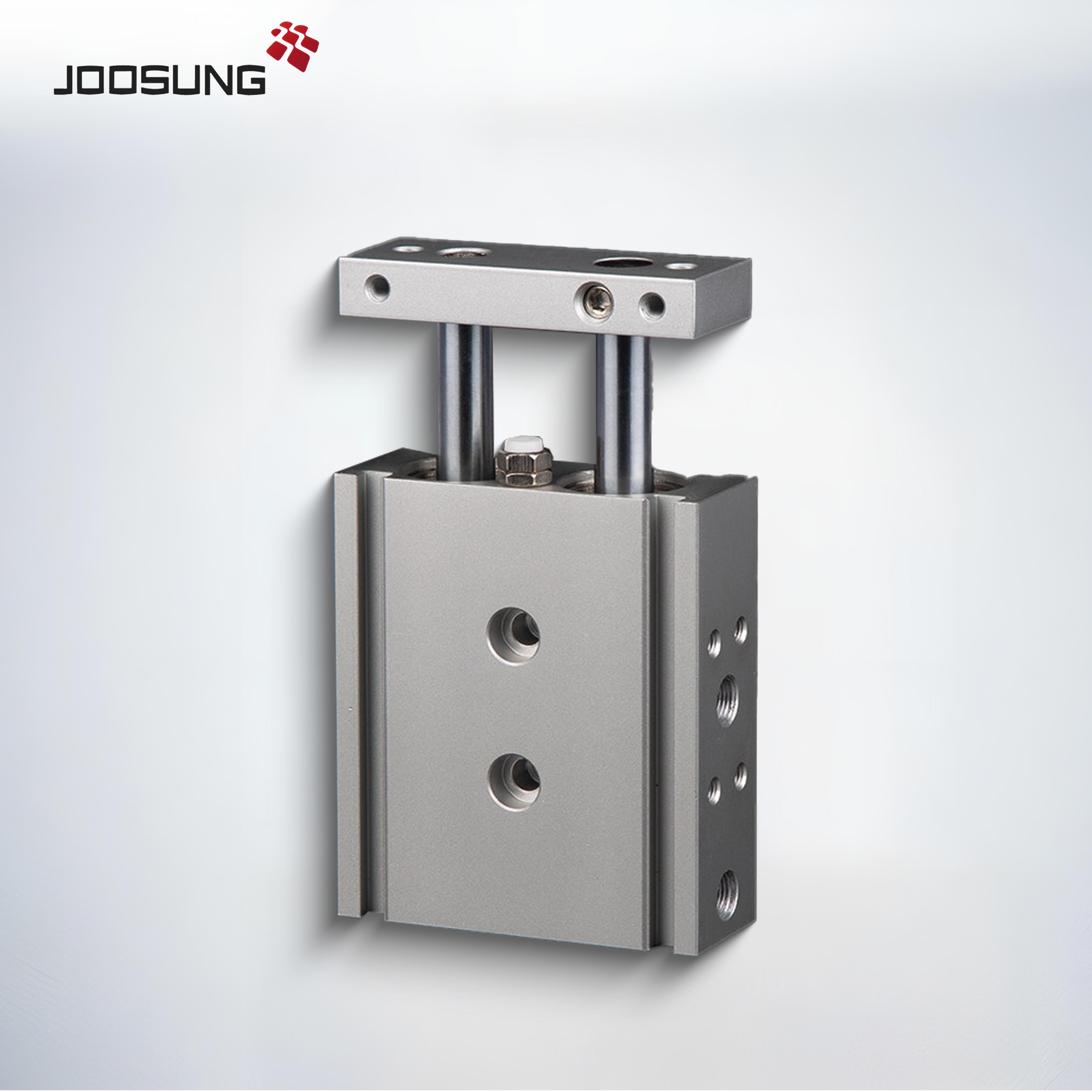

The CXSL Series Double Shaft Cylinder is designed to excel in high-pressure, space-constrained environments. Its dual-rod construction ensures balanced force distribution and rigidity, making the CXSL Series Double Shaft Cylinder indispensable for applications like CNC machinery, assembly lines, and automated clamping systems.
Built with aerospace-grade aluminum alloy and chrome-plated piston rods, the CXSL Series Double Shaft Cylinder resists corrosion, abrasion, and extreme temperatures (up to 150°C). This durability minimizes wear, while its leak-proof sealing technology ensures consistent performance even in dusty or humid conditions.
Optimized for rapid cycling, the CXSL Series Double Shaft Cylinder achieves 25% faster response times than conventional models. Its compact footprint saves installation space, and compatibility with ISO 21287 and VDMA standards guarantees easy retrofitting. With low friction and minimal maintenance needs, the CXSL Series Double Shaft Cylinder delivers unmatched cost efficiency over its lifespan.
Key Features:
·Dual-rod design for enhanced stability and accuracy
·Aerospace-grade aluminum body + chrome-plated rods
·Withstands temperatures up to 150°C and harsh environments
·ISO 21287/VDMA compliant for versatile integration
Ideal For: CNC machining, automated assembly, clamping systems, semiconductor manufacturing.
Series Model | Available Models |
CXSL6Series | CXSL6-5, CXSL6-10, CXSL6-15, CXSL6-20, CXSL6-25, CXSL6-30, CXSL6-35, CXSL6-40, CXSL6-45, CXSL6-50, CXSL6-55, CXSL6-60 |
CXSL10Series | CXSL10-5, CXSL10-10, CXSL10-15, CXSL10-20, CXSL10-25, CXSL10-30, CXSL10-35, CXSL10-40, CXSL10-45, CXSL10-50, CXSL10-55, CXSL10-60 |
CXSL16Series | CXSL16-5, CXSL16-10, CXSL16-15, CXSL16-20, CXSL16-25, CXSL16-30, CXSL16-35, CXSL16-40, CXSL16-45, CXSL16-50, CXSL16-55, CXSL16-60 |
CXSL20Series | CXSL20-5, CXSL20-10, CXSL20-15, CXSL20-20, CXSL20-25, CXSL20-30, CXSL20-35, CXSL20-40, CXSL20-45, CXSL20-50, CXSL20-55, CXSL20-60 |
CXSL25Series | CXSL25-5, CXSL25-10, CXSL25-15, CXSL25-20, CXSL25-25, CXSL25-30, CXSL25-35, CXSL25-40, CXSL25-45, CXSL25-50, CXSL25-55, CXSL25-60, CXSL25-65, CXSL25-70, CXSL25-75, CXSL25-80 |
CXSL32Series | CXSL32-5, CXSL32-10, CXSL32-15, CXSL32-20, CXSL32-25, CXSL32-30, CXSL32-35, CXSL32-40, CXSL32-45, CXSL32-50, CXSL32-55, CXSL32-60, CXSL32-65, CXSL32-70, CXSL32-75, CXSL32-80 |
