Specification
| ||||
|
Model |
4V110-M5
4V120-M5
|
4V130C-M5
4V130E-M5
4V130P-M5
|
4V110-06
4V120-06 |
4V130C-06
4V130E-06 4V130P-06 |
|
Fluid
|
Air(to be filtered by 40μm filter element)
| |||
|
Acting
|
Internal pilot or external pilot
| |||
|
Port size [Note1]
|
In=Out=M5
|
In=Out=1/8"
| ||
|
Orifice size
|
5.5mm²
(Cv=0.31) |
5.0mm²
(Cv=0.28) |
12.0mm² (Cv=0.67) |
9.0mm²
(Cv=0.50) |
|
Valve type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating pressure
|
0.15~0.8MPa(21~114psi)
| |||
|
Proof pressure
|
1.2MPa(175psi)
| |||
|
Temperature
|
-20~70℃
| |||
| Material ofbody
|
Aluminum alloy
| |||
| Lubrication [Note2]
|
Not required
| |||
| Max.frequency [Note3]
|
5 cycle/sec
|
3cycle/sec
|
5cycle/sec | 3cycle/sec
|
| Weight(g)
|
4V110-M5:120
4V120-M5:175 |
200 | 4V110-06:120
4V120-06:175 |
200 |
| [Note1]PT thread,G thread and NPT thread are available.
| ||||
| [Note2]Once lubricated air is used,continuewith same medium to optimise valve life
span.Lubricants like ISO VG32 or equivalent are recommended. | ||||
| [Note3]The maximum actuation frequency is in the no-load state. | ||||

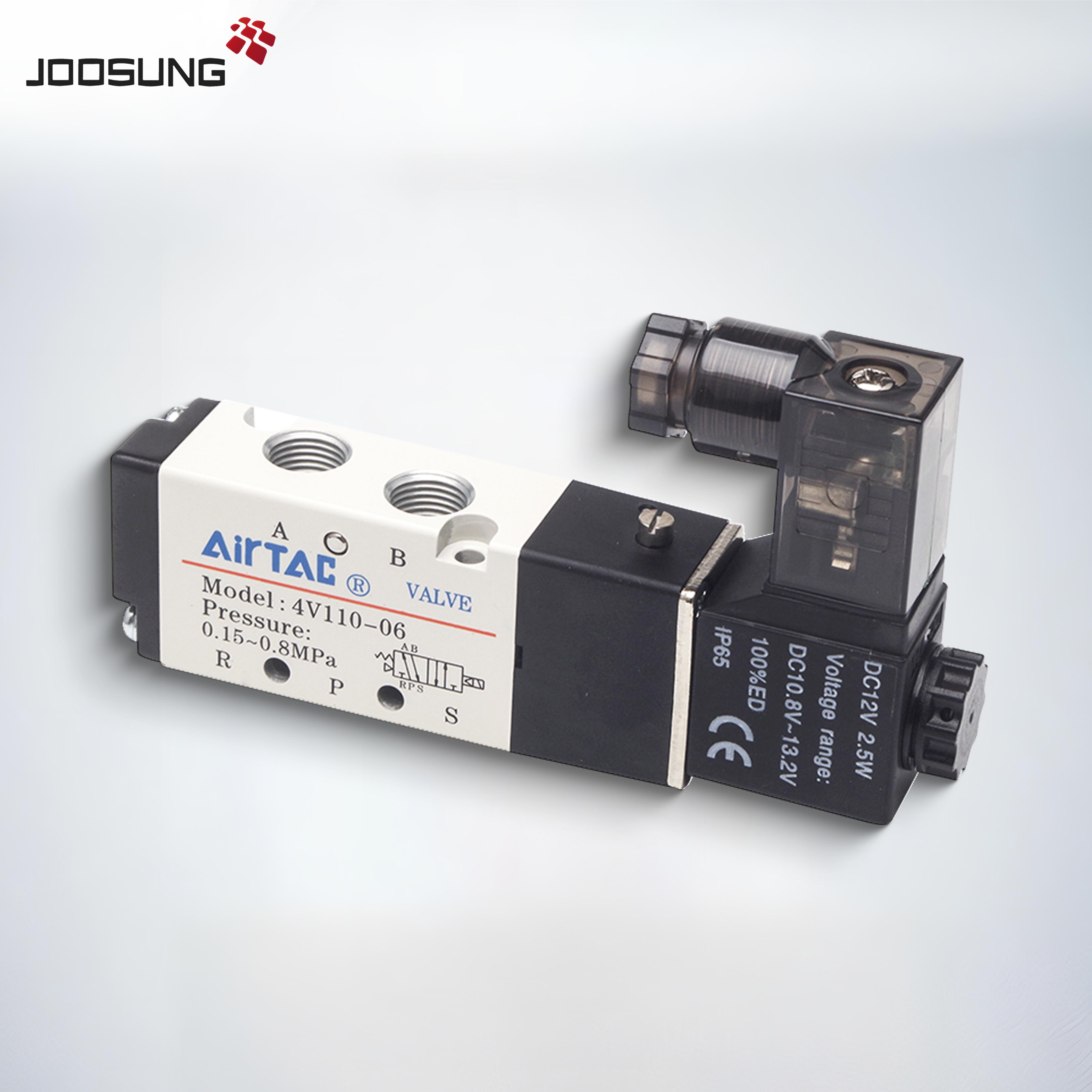

Product Name :4V100 Series Pneumatic Solenoid Valve
Type : Two-position Five-Way
Power Consumption:12V 24V 110V 220V 230V 380V or Custom
Working Temperature Range: 5~50°C
It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls
( pipeline, artificial river etc. and air controls ( lab, factory, etc.)
We have solenoids available in AC/DC and various size NPT threads as well
