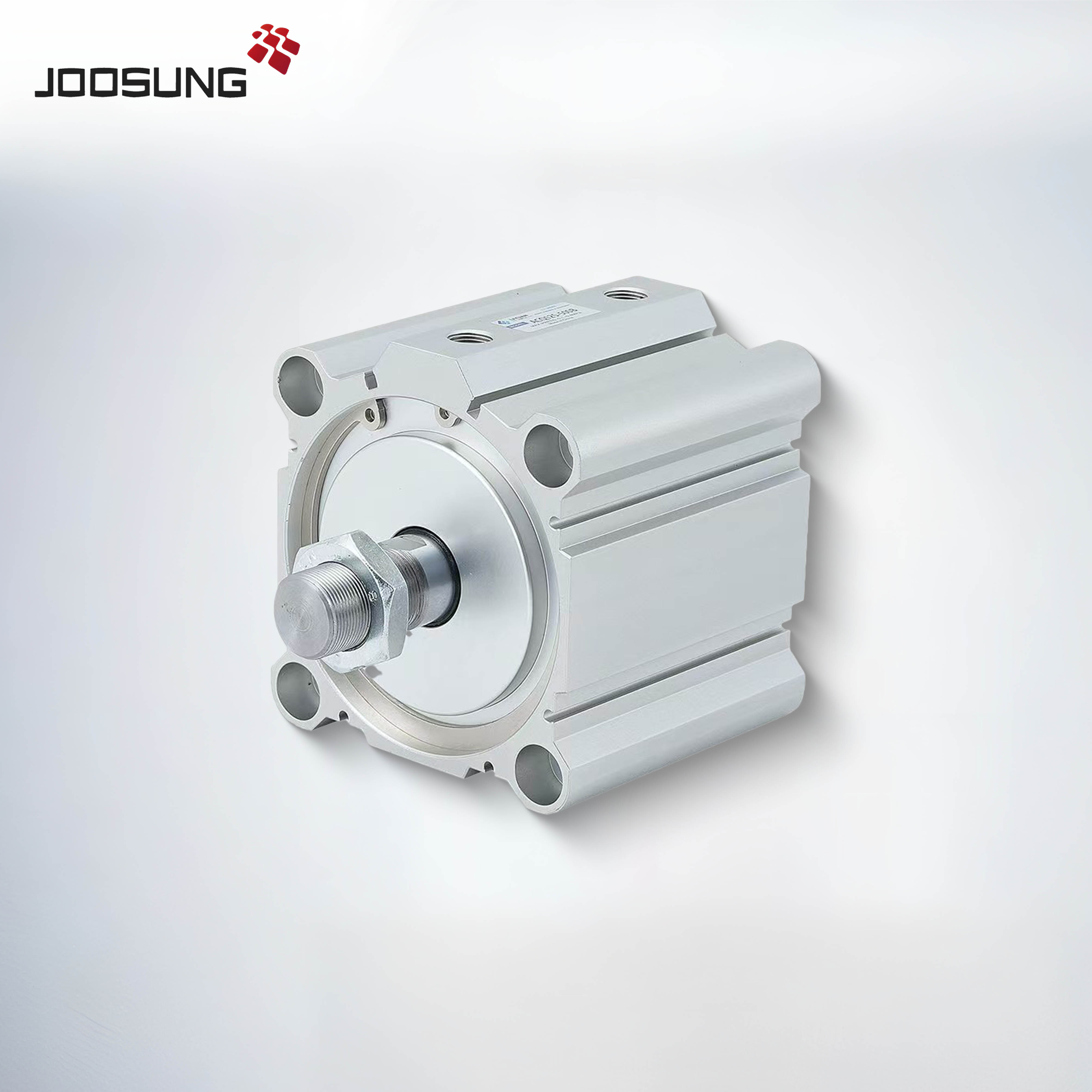

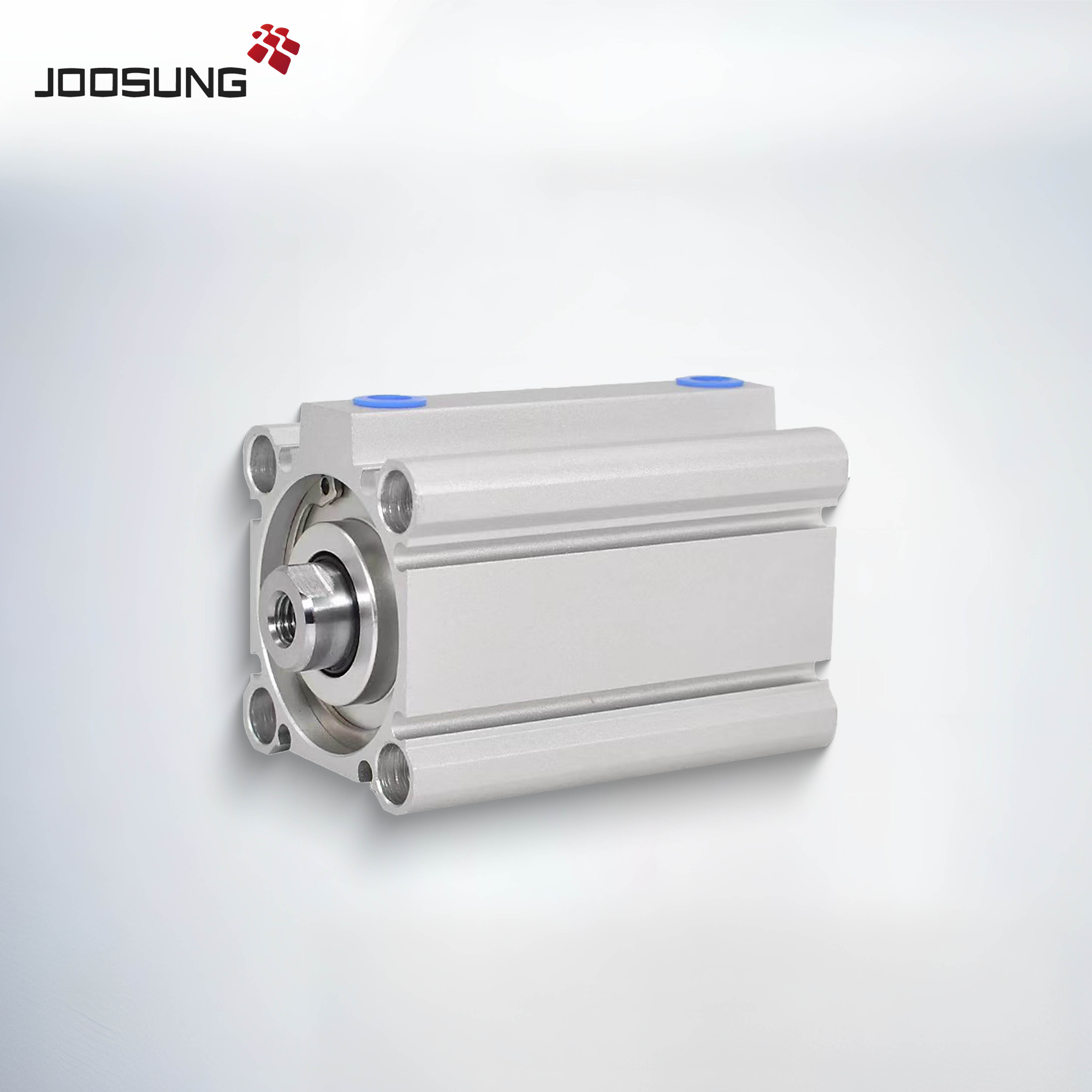

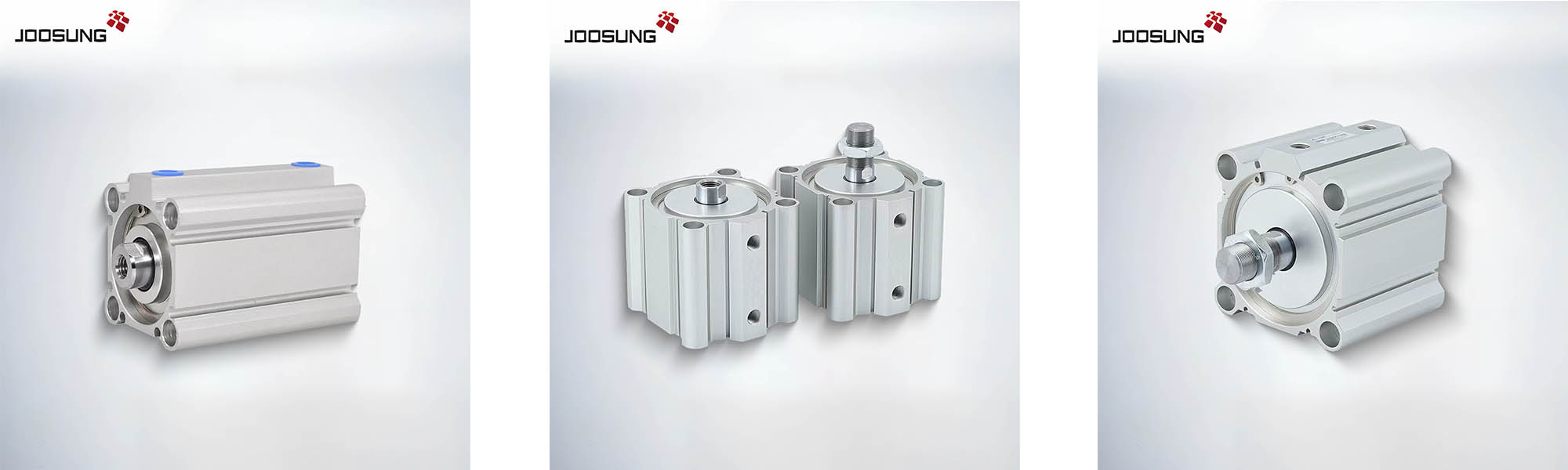

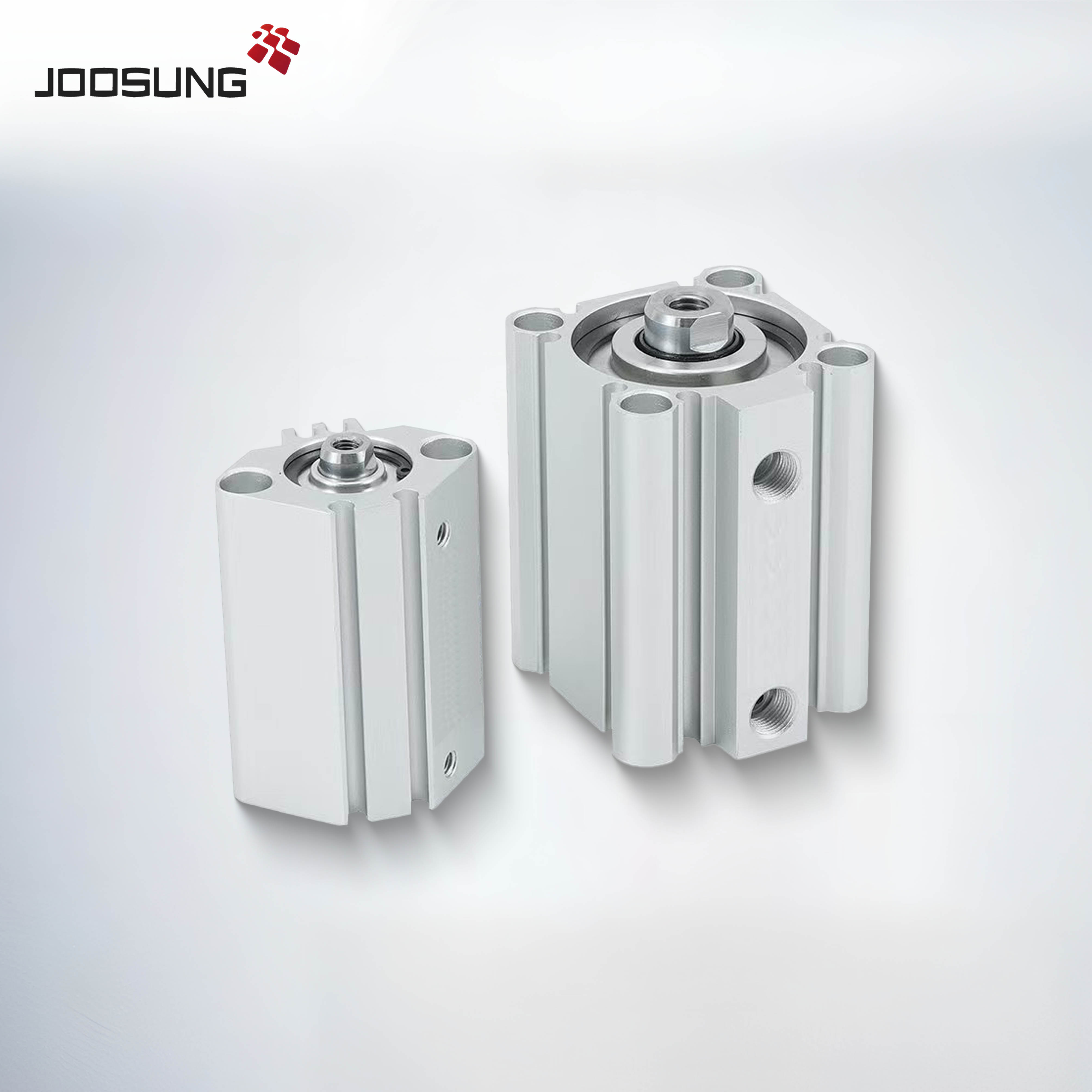

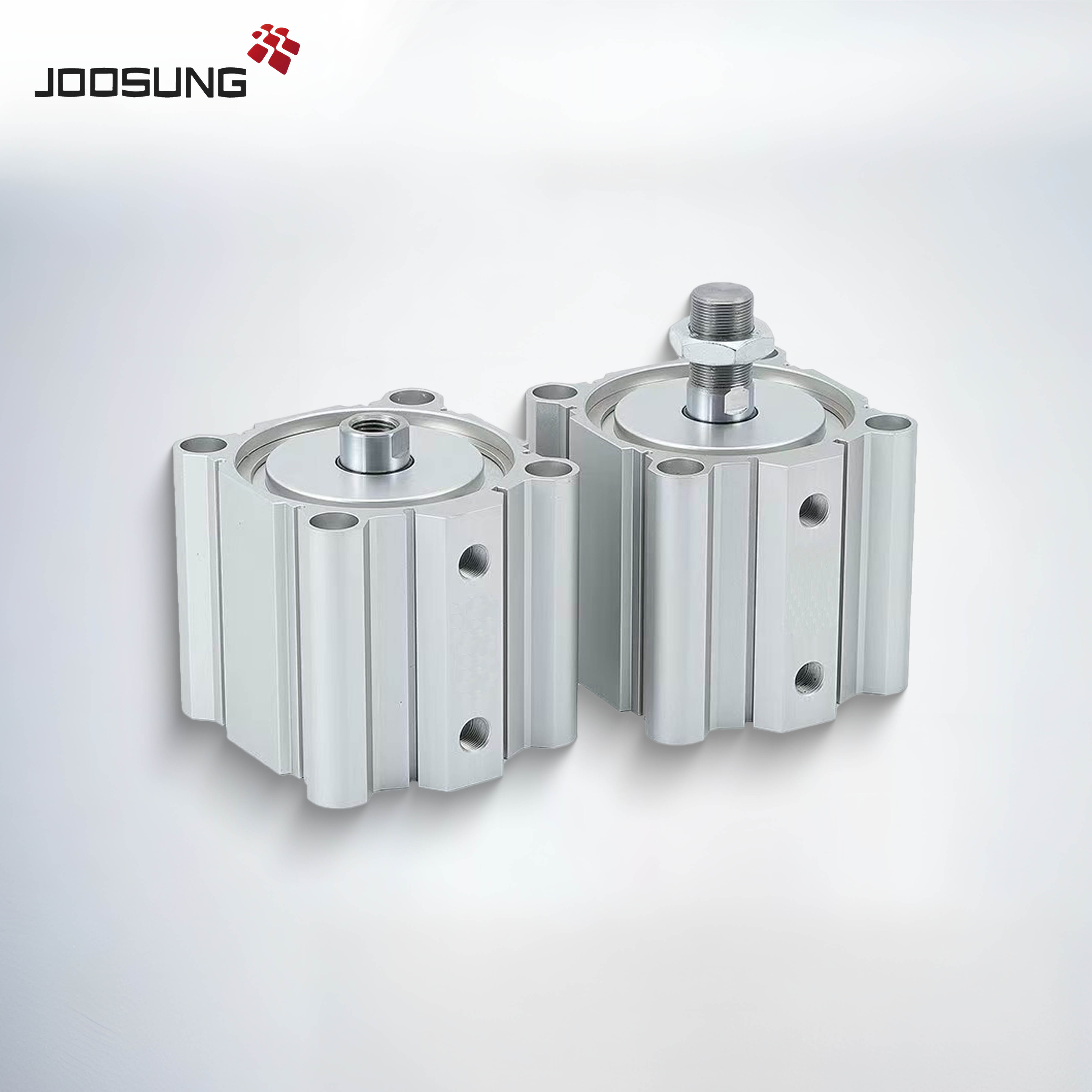

Specifications

Pneumatictype

Bore size [mm]

4

6

10

Action

Double acting, Single rod

Fluid

Air

Proof pressure

1.0 MPa

Maximum operating pressure

0.7 MPa

Minimum operating pressure

0.15 MPa

0.1 MPa

Ambient and fluid temperatures

Without auto switch magnet: -10 to 70℃
With auto switch magnet: -10 to 60℃

(No freezing)

Lubrication

Not required(Non-lube)

Piston speed

50 to 500 mm/s

Allowable kinetic
energy [J]

Without cushion

0.9×10-³

2.2x10-³

5.9×10 ·³

With a rubber bumper

7.5×10-³

12.0×10-3

51.6×10-3

Stroke length tolerance

+1.0 mm*10

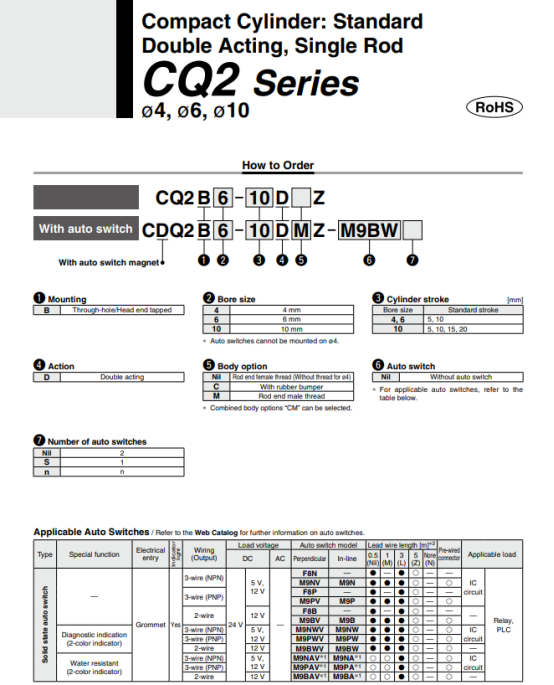

Series Model

Available Models

CQ2B12 Series

CQ2B12-5D, CQ2B12-10D, CQ2B12-15D, CQ2B12-20D, CQ2B12-25D,

CQ2B12-30D, CQ2B12-35D, CQ2B12-40D, CQ2B12-45D, CQ2B12-50D,

CQ2B12-55D, CQ2B12-60D

CQ2B16 Series

CQ2B16-5D, CQ2B16-10D, CQ2B16-15D, CQ2B16-20D, CQ2B16-25D,

CQ2B16-30D, CQ2B16-35D, CQ2B16-40D, CQ2B16-45D, CQ2B16-50D,

CQ2B16-55D, CQ2B16-60D

CQ2B20 Series

CQ2B20-5D, CQ2B20-10D, CQ2B20-15D, CQ2B20-20D, CQ2B20-25D,

CQ2B20-30D, CQ2B20-35D, CQ2B20-40D, CQ2B20-45D, CQ2B20-50D,

CQ2B20-55D, CQ2B20-60D

CQ2B25 Series

CQ2B25-5D, CQ2B25-10D, CQ2B25-15D, CQ2B25-20D, CQ2B25-25D,

CQ2B25-30D, CQ2B25-35D, CQ2B25-40D, CQ2B25-45D, CQ2B25-50D,

CQ2B25-55D, CQ2B25-60D

CQ2B32 Series

CQ2B32-5D, CQ2B32-10D, CQ2B32-15D, CQ2B32-20D, CQ2B32-25D,

CQ2B32-30D, CQ2B32-35D, CQ2B32-40D, CQ2B32-45D, CQ2B32-50D,

CQ2B32-55D, CQ2B32-60D, CQ2B32-65D, CQ2B32-70D, CQ2B32-75D, CQ2B32-80D

CQ2B40 Series

CQ2B40-5D, CQ2B40-10D, CQ2B40-15D, CQ2B40-20D, CQ2B40-25D,

CQ2B40-30D, CQ2B40-35D, CQ2B40-40D, CQ2B40-45D, CQ2B40-50D,

CQ2B40-55D, CQ2B40-60D, CQ2B40-65D, CQ2B40-70D, CQ2B40-75D, CQ2B40-80D

CQ2B50 Series

CQ2B50-5D, CQ2B50-10D, CQ2B50-15D, CQ2B50-20D, CQ2B50-25D,

CQ2B50-30D, CQ2B50-35D, CQ2B50-40D, CQ2B50-45D, CQ2B50-50D,

CQ2B50-55D, CQ2B50-60D, CQ2B50-65D, CQ2B50-70D, CQ2B50-75D, CQ2B50-80D

CQ2B63 Series

CQ2B63-5D, CQ2B63-10D, CQ2B63-15D, CQ2B63-20D, CQ2B63-25D,

CQ2B63-30D, CQ2B63-35D, CQ2B63-40D, CQ2B63-45D, CQ2B63-50D,

CQ2B63-55D, CQ2B63-60D, CQ2B63-65D, CQ2B63-70D, CQ2B63-75D, CQ2B63-80D

CQ2B80 Series

CQ2B80-5D, CQ2B80-10D, CQ2B80-15D, CQ2B80-20D, CQ2B80-25D,

CQ2B80-30D, CQ2B80-35D, CQ2B80-40D, CQ2B80-45D, CQ2B80-50D,

CQ2B80-55D, CQ2B80-60D, CQ2B80-65D, CQ2B80-70D, CQ2B80-75D, CQ2B80-80D

Series Model

Available Models

CDQ2B12 Series

CDQ2B12-5D, CDQ2B12-10D, CDQ2B12-15D, CDQ2B12-20D, CDQ2B12-25D,

CDQ2B12-30D, CDQ2B12-35D, CDQ2B12-40D, CDQ2B12-45D, CDQ2B12-50D,

CDQ2B12-55D, CDQ2B12-60D

CDQ2B16 Series

CDQ2B16-5D, CDQ2B16-10D, CDQ2B16-15D, CDQ2B16-20D, CDQ2B16-25D,

CDQ2B16-30D, CDQ2B16-35D, CDQ2B16-40D, CDQ2B16-45D, CDQ2B16-50D,

CDQ2B16-55D, CDQ2B16-60D

CDQ2B20 Series

CDQ2B20-5D, CDQ2B20-10D, CDQ2B20-15D, CDQ2B20-20D, CDQ2B20-25D,

CDQ2B20-30D, CDQ2B20-35D, CDQ2B20-40D, CDQ2B20-45D, CDQ2B20-50D,

CDQ2B20-55D, CDQ2B20-60D

CDQ2B25 Series

CDQ2B25-5D, CDQ2B25-10D, CDQ2B25-15D, CDQ2B25-20D, CDQ2B25-25D,

CDQ2B25-30D, CDQ2B25-35D, CDQ2B25-40D, CDQ2B25-45D, CDQ2B25-50D,

CDQ2B25-55D, CDQ2B25-60D

CDQ2B32 Series

CDQ2B32-5D, CDQ2B32-10D, CDQ2B32-15D, CDQ2B32-20D, CDQ2B32-25D,

CDQ2B32-30D, CDQ2B32-35D, CDQ2B32-40D, CDQ2B32-45D, CDQ2B32-50D,

CDQ2B32-55D, CDQ2B32-60D, CDQ2B32-65D, CDQ2B32-70D, CDQ2B32-75D, CDQ2B32-80D

CDQ2B40 Series

CDQ2B40-5D, CDQ2B40-10D, CDQ2B40-15D, CDQ2B40-20D, CDQ2B40-25D,

CDQ2B40-30D, CDQ2B40-35D, CDQ2B40-40D, CDQ2B40-45D, CDQ2B40-50D,

CDQ2B40-55D, CDQ2B40-60D, CDQ2B40-65D, CDQ2B40-70D, CDQ2B40-75D, CDQ2B40-80D

CDQ2B50 Series

CDQ2B50-5D, CDQ2B50-10D, CDQ2B50-15D, CDQ2B50-20D, CDQ2B50-25D,

CDQ2B50-30D, CDQ2B50-35D, CDQ2B50-40D, CDQ2B50-45D, CDQ2B50-50D,

CDQ2B50-55D, CDQ2B50-60D, CDQ2B50-65D, CDQ2B50-70D, CDQ2B50-75D, CDQ2B50-80D

CDQ2B63 Series

CDQ2B63-5D, CDQ2B63-10D, CDQ2B63-15D, CDQ2B63-20D, CDQ2B63-25D,

CDQ2B63-30D, CDQ2B63-35D, CDQ2B63-40D, CDQ2B63-45D, CDQ2B63-50D,

CDQ2B63-55D, CDQ2B63-60D, CDQ2B63-65D, CDQ2B63-70D, CDQ2B63-75D, CDQ2B63-80D

CDQ2B80 Series

CDQ2B80-5D, CDQ2B80-10D, CDQ2B80-15D, CDQ2B80-20D, CDQ2B80-25D,

CDQ2B80-30D, CDQ2B80-35D, CDQ2B80-40D, CDQ2B80-45D, CDQ2B80-50D,

CDQ2B80-55D, CDQ2B80-60D, CDQ2B80-65D, CDQ2B80-70D, CDQ2B80-75D, CDQ2B80-80D
