Product Specifications | ||||||||
Bore（mm） | 6 | 10 | 16 | 20 | 25 | 32 | 40 | |
Working medium | Clean air(40um Filteration) | |||||||
Working temperature | -10 to 60℃ | |||||||
Working pressure range（Mpa） | Double acting | 0.15 to 0.7 | 0.2 to 0.7 | 0.1 to 0.7 | 0.1 to 0.7 | |||
SIngle acting | 0.3 to 0.7 | 0.35 to 0.7 | 0.25 to 0.7 | 0.25 to 0.7 | ||||
Repeatability | ±0.01 | ±0.02 | ||||||
Max.acting frequency | 180c.p.m | 60c.p.m | ||||||
Lubrication | Not required | |||||||
Port size | M3x0.5 | M5x0.8 | ||||||

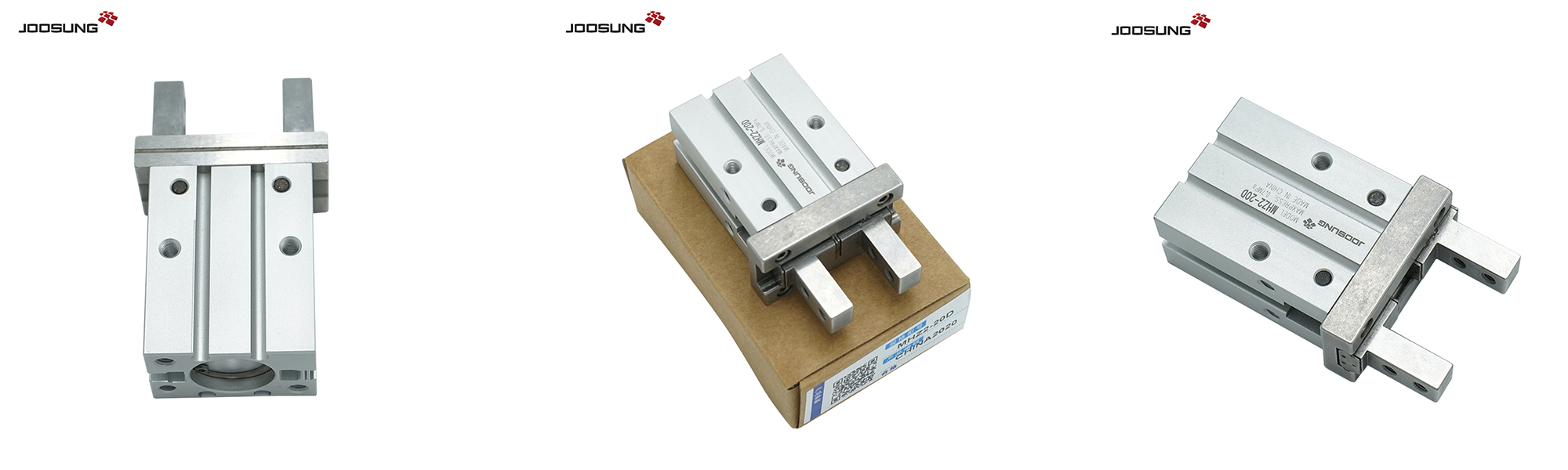

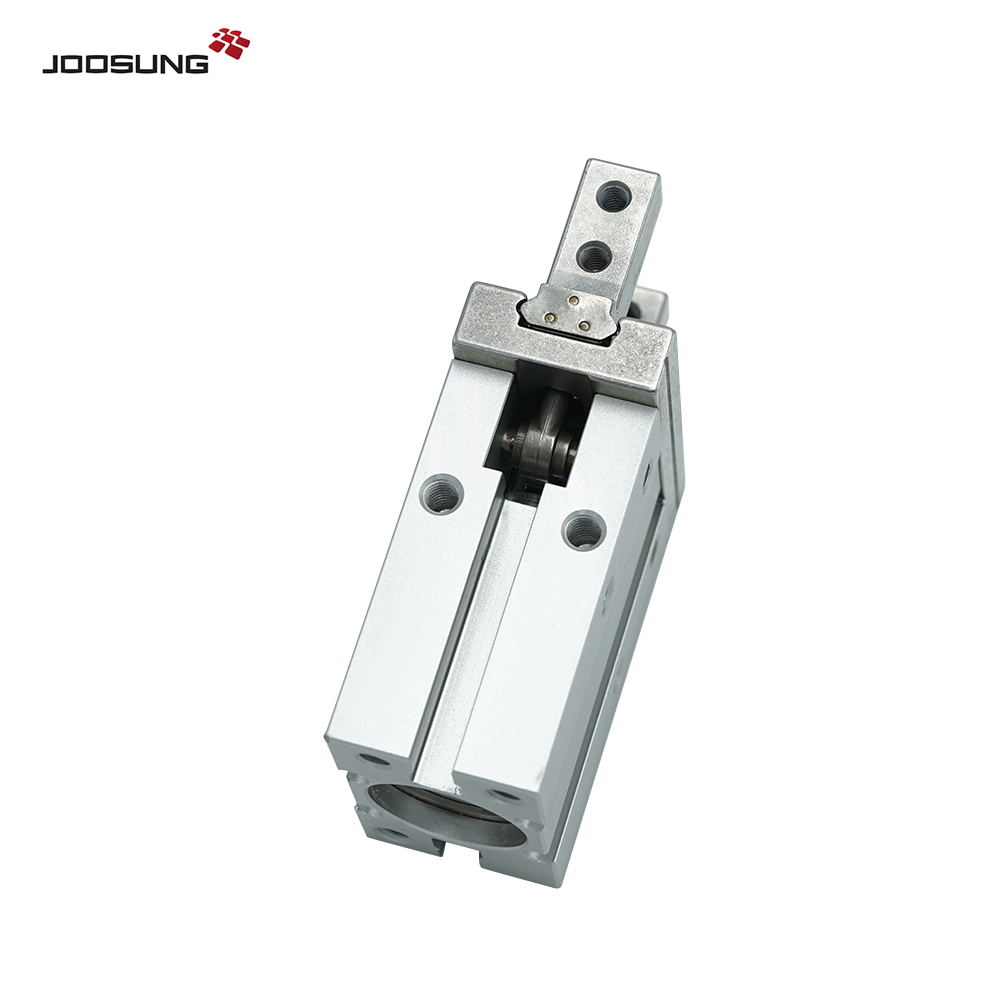

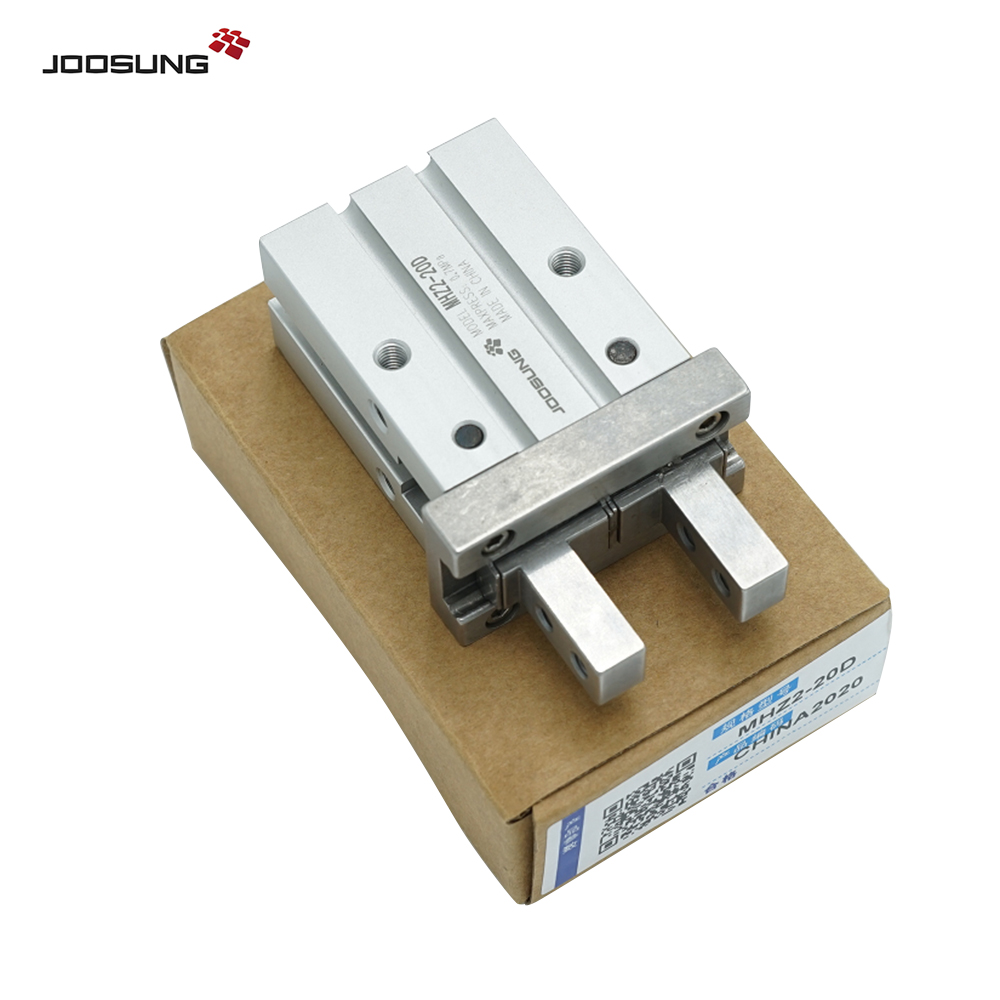

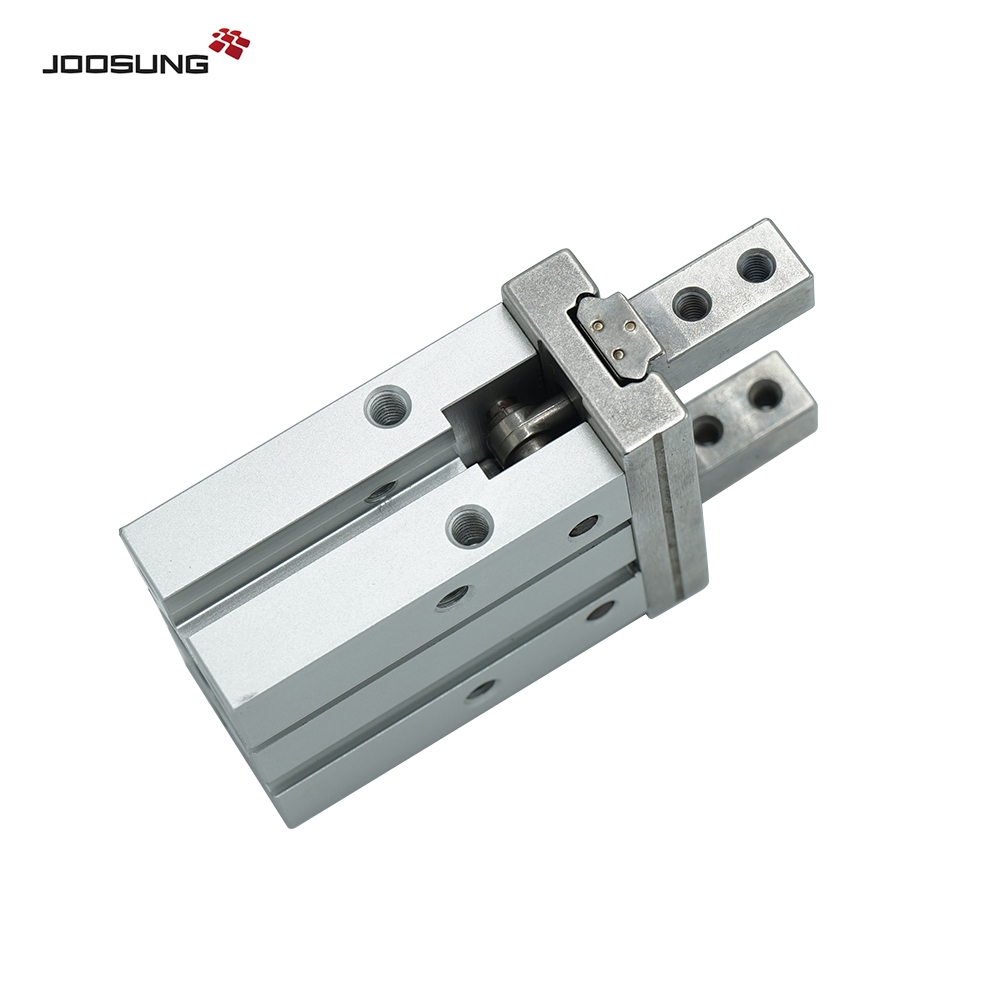

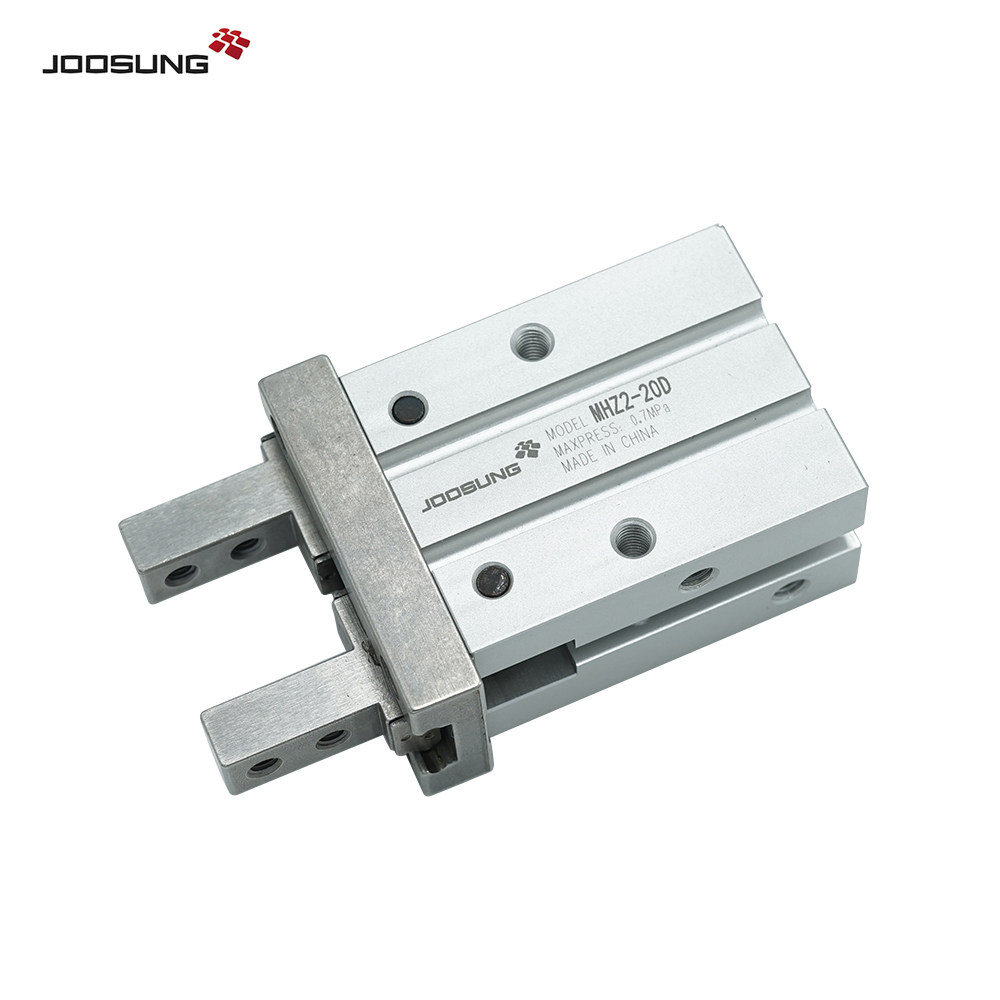

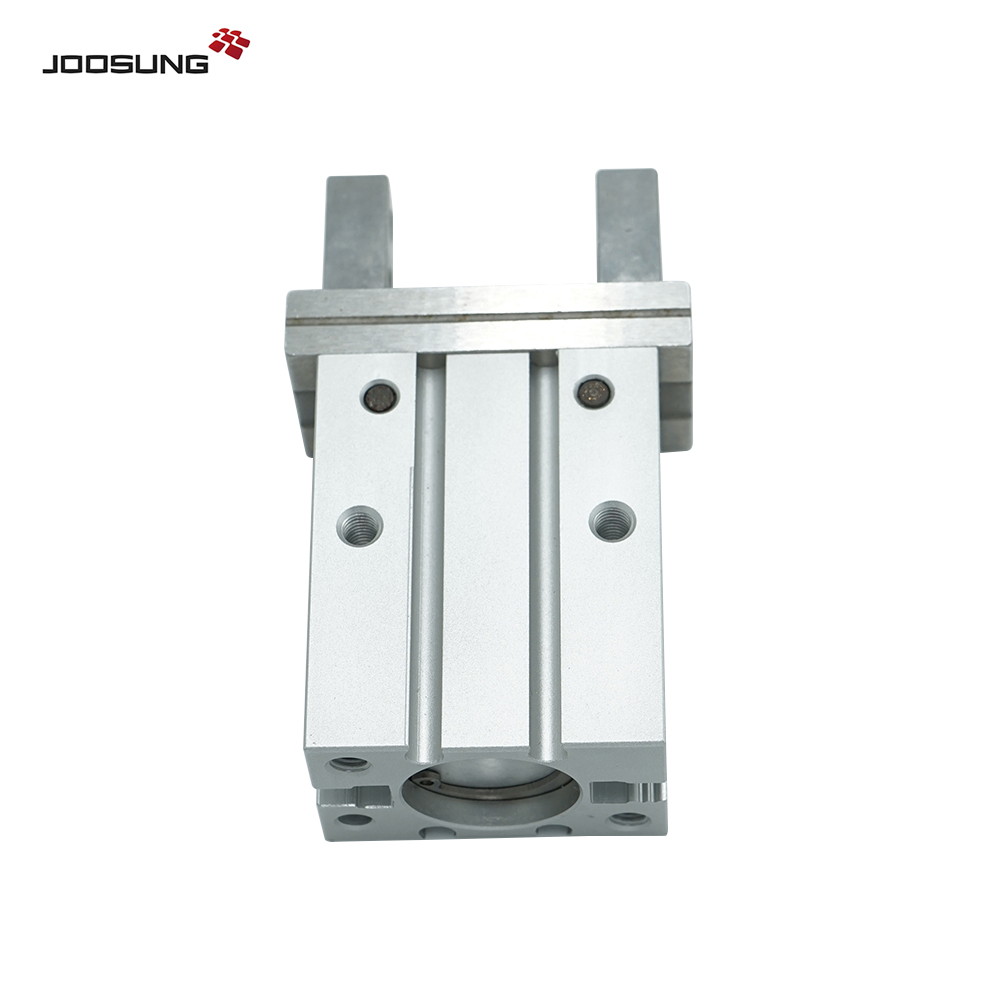

MHZ2 Series Linear Guide Parallel Type Air Gripper
CompactPreciseVersatile.
The MHZ2 Series Linear Guide Parallel Type Air Gripper or Parallel Type Pneumatic Air Gripper are compact air-driven grippers designed for stable and precise gripping in automation systems. With synchronized dual fingers and a parallel opening/closing mechanism, MHZ2 grippers are ideal for handling small parts in limited-space applications.
Key Features of MHZ2 Series Grippers
Parallel jaw movement ensures smooth and accurate gripping force.
Compact and lightweight design suitable for robots and automated pick-and-place units.
Wide range of sizes available to match different load capacities and workspace needs.
High repeatability for precise gripping of small or delicate components.
Optional magnetic sensors available for position detection and automation feedback.
Multiple mounting options (side, bottom, or top) make integration flexible and easy.
Application Fields
The MHZ2 Series Pneumatic Grippers are widely used in:
Pick-and-place automation
Electronic component handling
Assembly systems
Robotic arms and end-of-arm tooling
Packaging and inspection lines
Request a Quote Today
JoosungAuto is a leading pneumatic component supplier based in China. We specialize in automation products including MHZ2 Series Pneumatic Grippers, MHY2 angular grippers, TCL cylinders, and also solenoid Valves.
With reliable OEM and ODM service, fast delivery, and full customization options, JoosungAuto offers efficient and affordable solutions for your automation needs. Our MHZ2 Series Grippers are engineered for long life, high precision, and easy integration in any pneumatic system.
Visit us:
www.joosungauto.com
www.autojoosung.com
Contact Us:
Email: bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#MHZ2Gripper #PneumaticGripper #ParallelGripper #AutomationSolutions #JoosungAuto #OEMPneumatics

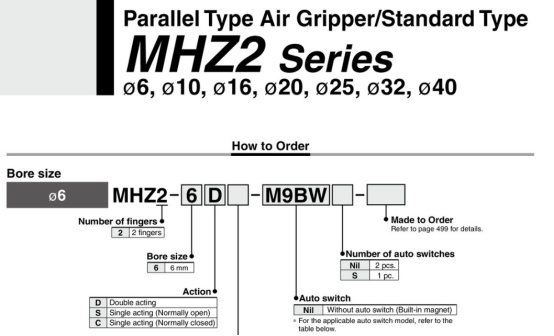

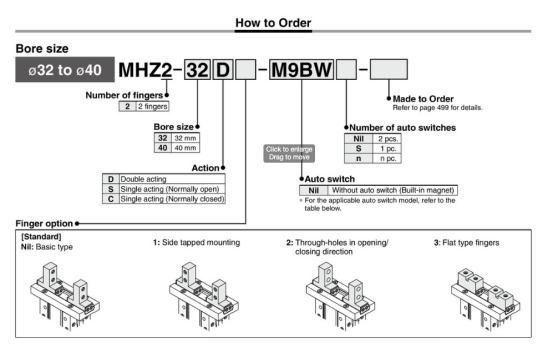

Series Model | Available Models |
Double Acting Series | MHZ2-6D,MHZ2-10D(N),MHZ2-16D(N),MHZ2-20D(N),MHZ2-25D(N),MHZ2-32D,MHZ2-40D |
Single Acting Series(NO) | MHZ2-6S,MHZ2-10S(N),MHZ2-16S(N),MHZ2-20S(N),MHZ2-25S(N),MHZ2-32S,MHZ2-40S |
Single Acting Series(NC) | MHZ2-6C,MHZ2-10C(N),MHZ2-16C(N),MHZ2-20C(N),MHZ2-25C(N),MHZ2-32C,MHZ2-40C |
