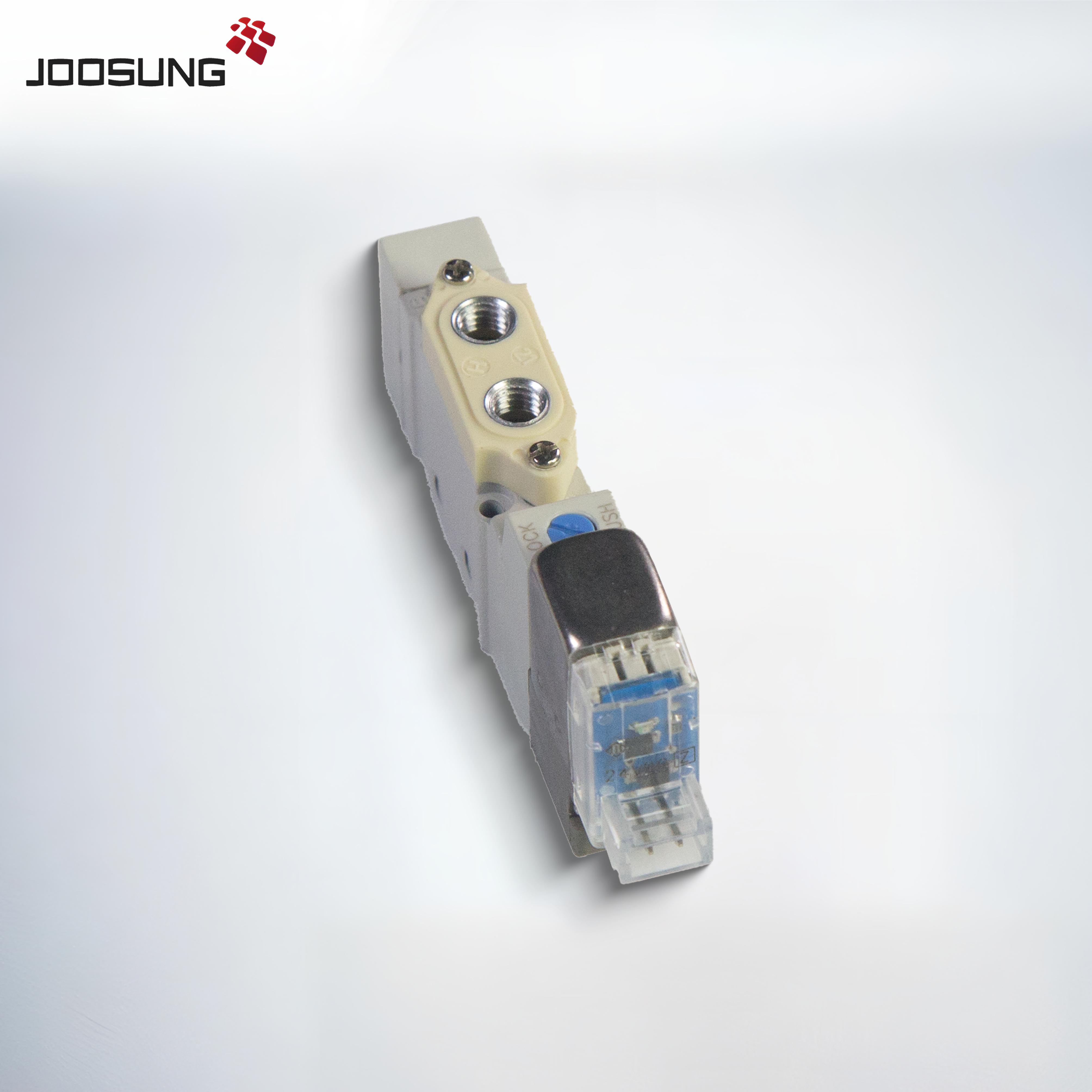

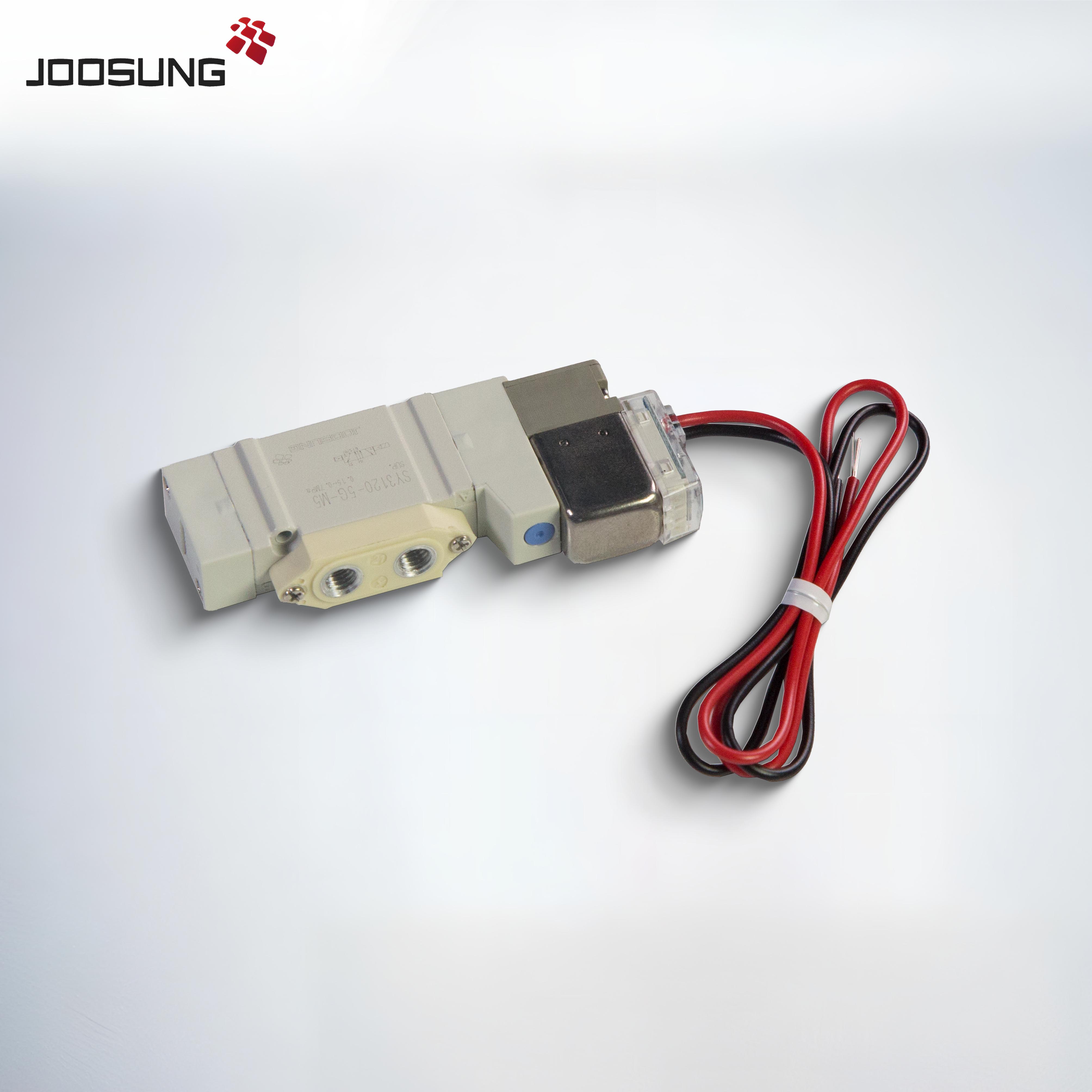

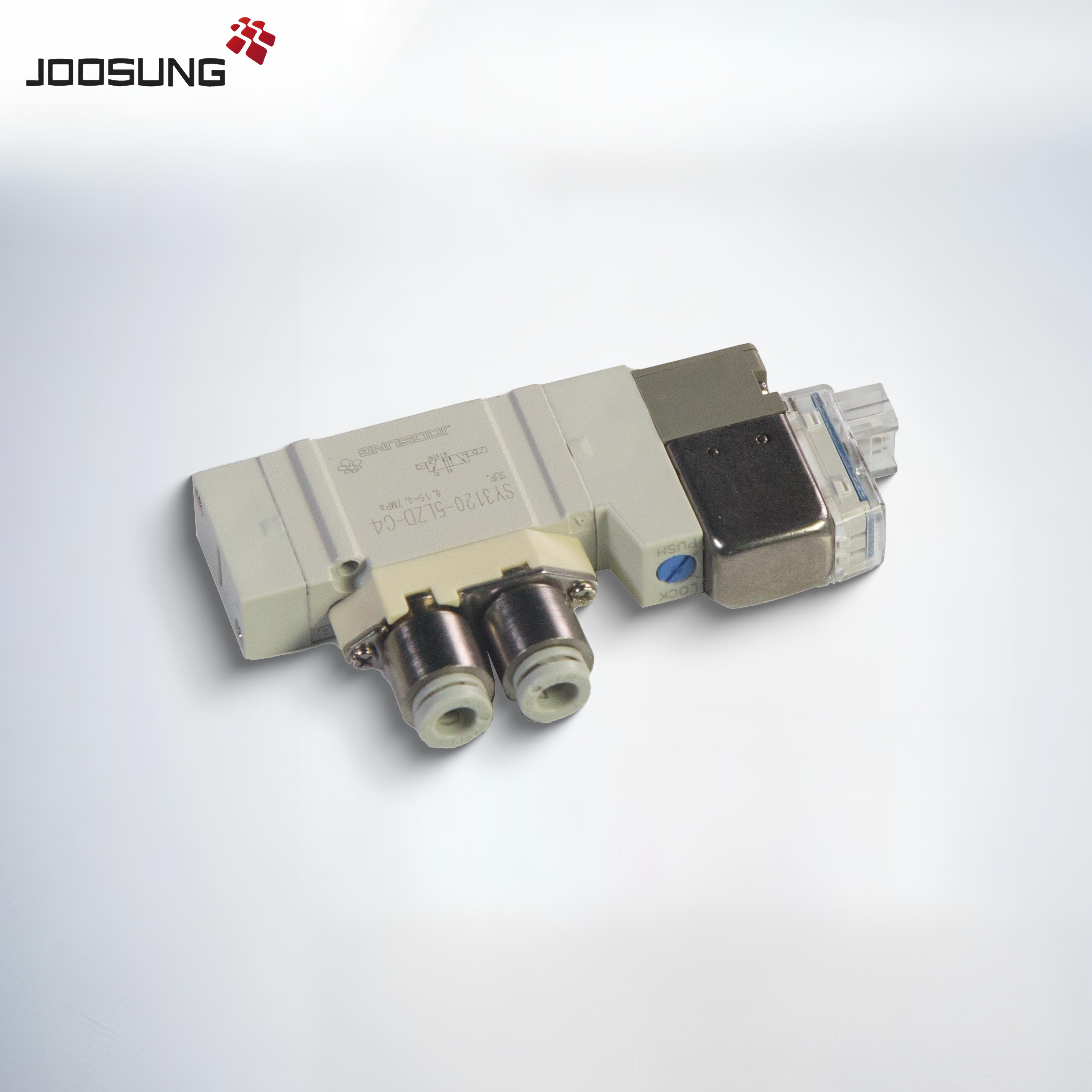

SMC SY3000 Series Pneumatic Solenoid Valves

Specifications
Series		SY3000	SY5000	SY7000	SY9000
Fluid		Air
Internal pilot Operating pressure range (MPa)	2 position single	0.15 to 0.7
	2 position double	0.1 to 0.7
	3 position	0.2 to 0.7
Ambient and fluid temperature(C)		-10 to 50(No freezing)
Max.operating frequency(Hz)	2 position single,double	10	5	5	5
	3 position	3	3	3	3
Manual override(Manual operation)		Non-locking push type, Push-turn locking slotted type,Push-turn locking lever type
Pilot exhaust method		Common exhaust type for main and pilot valve
Lubrication		Not required
Mounting orientation		Unrestricted
Impact/Vibration resistance(m/s²)Note)		150/30
Enclosure		*Dust proof(DIN terminal and M8 connector:IP65)**

The SY3000 Series solenoid valves feature high energy efficiency and reliable operation, ideal for industrial automation systems.

The SY3000 Series solenoid valves compact design allows seamless integration in space-constrained environments without compromising performance.

The SY3000 Series solenoid valves robust construction with corrosion-resistant materials ensures extended durability in harsh operating conditions.

The SY3000 Series solenoid valves fast response times and precise flow control optimize process efficiency across varied applications.

The SY3000 Series solenoid valves use-friendly installation and maintenance procedures reduce downtime and operational costs.
