Specification | ||||||||
Bore(mm) | 10 | 20 | 30 | 50 | 70 | 100 | 200 | |
Operation Fulid | Air(Non-lub) | |||||||
Operation | Double Acting | |||||||
Max.Operation | With ange adjustng screw | 1MPa | ||||||
With hydralicCushion | 0.6MPa | |||||||
Min.Operation Pressure | 0.1MPa | |||||||
Ambient and fluid temperature | 0~60℃ | |||||||
Cushion | Rubber Buffer(Standard)/Hydralic Cushion device(Optional) | |||||||
Function | With angle adjusting screw | 0.007J | 0.025J | 0.048J | 0.081J | 0.24J | 0.32J | 0.56J |
With hydralicCushion | 0.039J | 0.116J | 0.294J | 1.1J | 1.6J | 2.9J | ||
Angle adjusting range | 0~190° | |||||||
Max.rotating angle | 190° | |||||||
Steady rotating | With angle adjustng screw | 0.2~1.0s/90° | 0.2~1.5s/90° | 0.2~2.0s/90° | 0.2~2.5s/90° | |||
With hydralicCushion | 0.2~0.7s/90° | 0.2~1.0s/90° | ||||||
Bore | φ15 | φ18 | φ21 | φ25 | φ28 | φ32 | φ40 | |
Port Size | M5×0.8 | Rc1/8 | ||||||
Max.operation pressure is subject to the Max.load of hydraulic Cushion device. | ||||||||

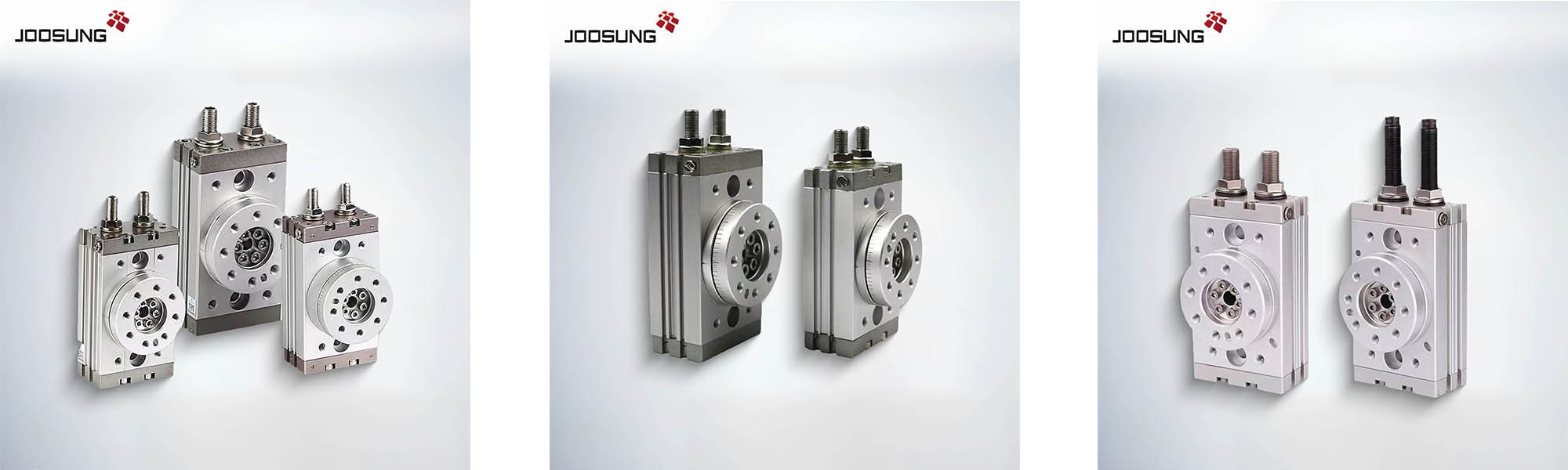

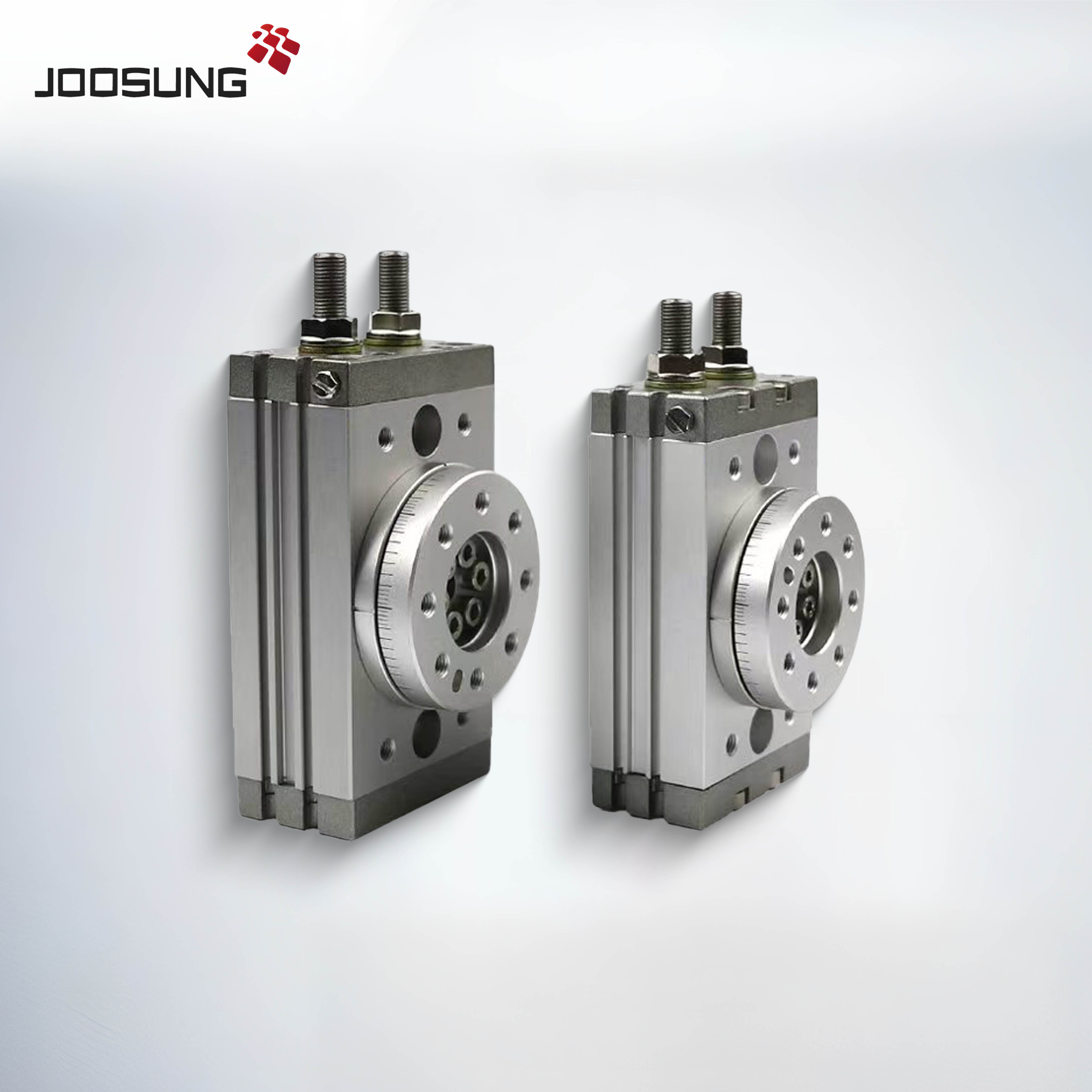

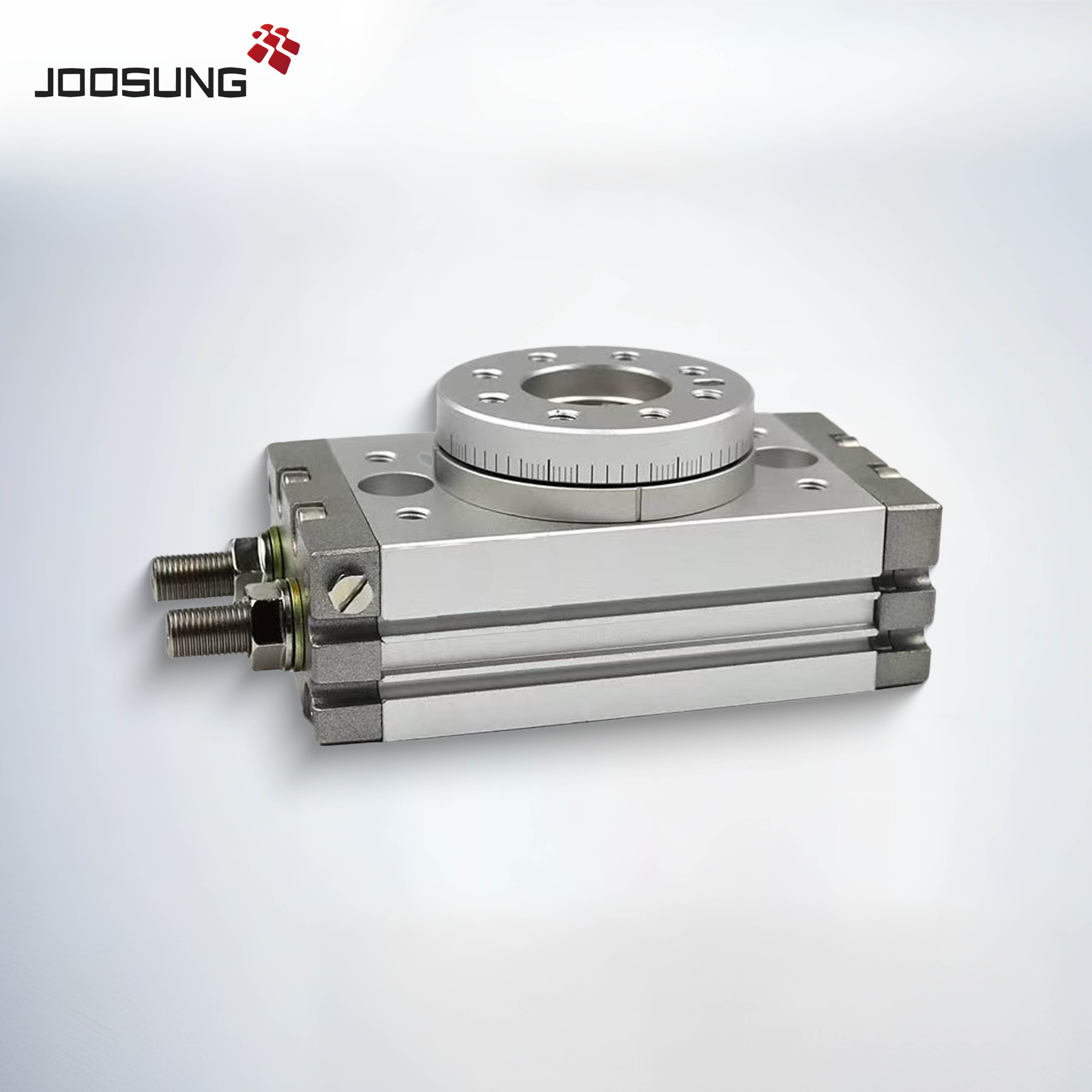

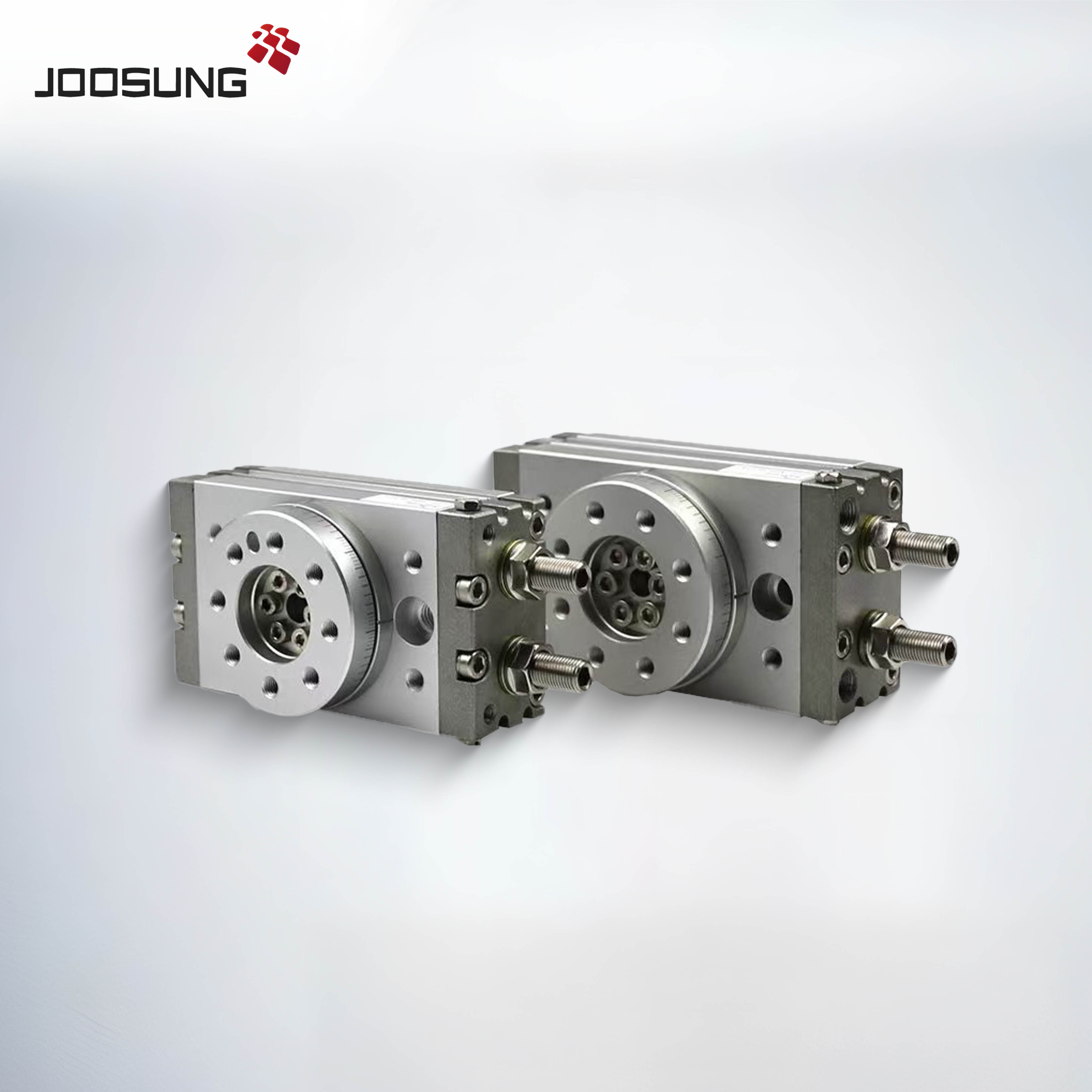

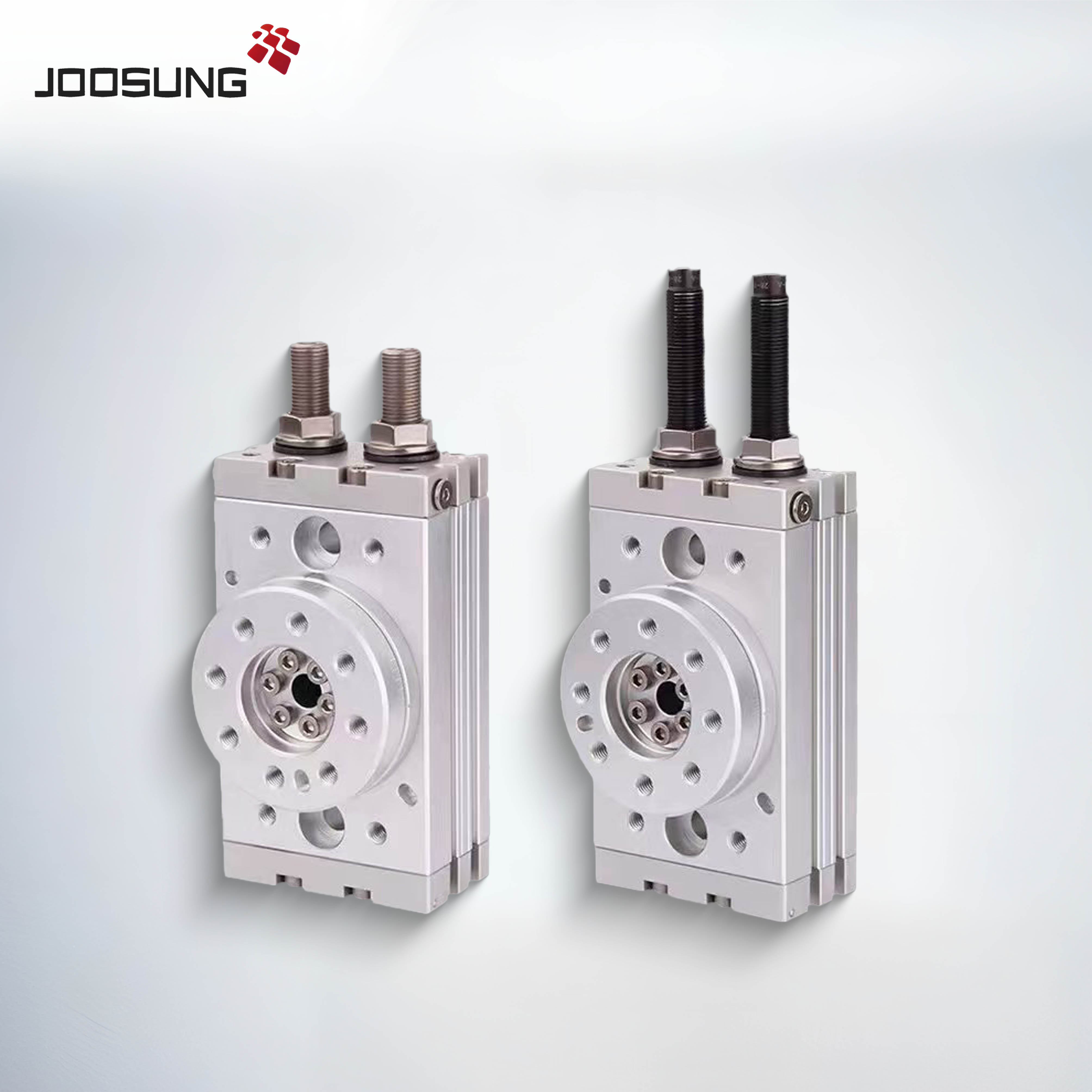

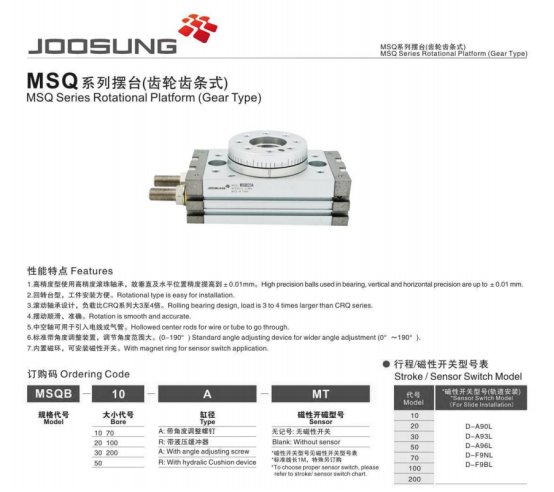

The MSQB Series Rotating Pneumatic Cylinder is specially designed for accurate rotary positioning in compact spaces. With a built-in turntable and precision gear mechanism, the MSQB Series Rotating Pneumatic Cylinder enables controlled rotation angles with reliable torque output. This series is ideal for pick-and-place systems, indexing tables, and robotic automation.
The MSQB Series Rotating Pneumatic Cylinder provides smooth and precise rotary motion, suitable for automated positioning tasks.
Compact and lightweight design makes the MSQB Series Rotating Pneumatic Cylinder easy to integrate into space-constrained equipment.
Adjustable rotation angles (e.g., 90°, 180°, 270°) allow flexible motion control with high repeatability.
The MSQB Series Rotating Pneumatic Cylinder offers direct load mounting with high torsional rigidity.
Low-maintenance, long-life rotary actuator ideal for continuous operation environments.
The MSQB Series Rotating Pneumatic Cylinder is widely used in:
Pick-and-place automation
Rotary indexing machines
Small robotic arms
Electronic assembly lines
Precision rotary positioning systems
Available Models：
MSQB-10A, MSQB-20A, MSQB-30A, MSQB-50A, MSQB-70A, MSQB-100A, MSQB-200A
MSQB-10R, MSQB-20R, MSQB-30R, MSQB-50R,MSQB-70R, MSQB-100R, MSQB-200R
Get a Quote for MSQB Series Now
Upgrade your automation system with the MSQB Series Rotating Pneumatic Cylinder— engineered for smooth, accurate rotation and compact performance.
OEM service, fast delivery, and full technical support available for global customers.
